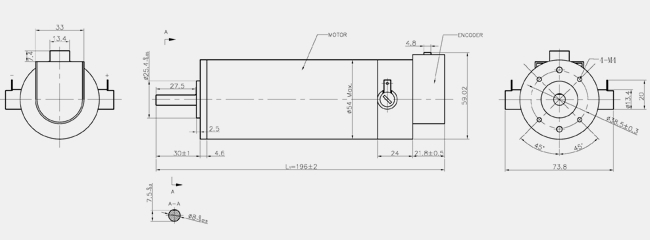

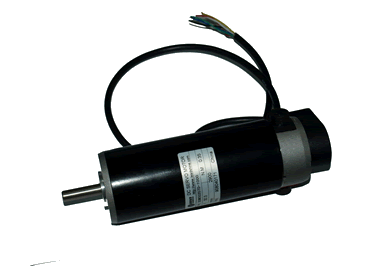

Leadshine DCM50207D Brush DC Servo Motor. 54 mm diameter; 120W Rated Power; 50 oz-in (0.35 N.m) Continuous Torque; 2900 RPM Peak Speed; 1,000-line Encoder

DCM50207D-1000 : Leadshine DCM50207D Brush DC Servo Motor. 54 mm diameter; 120W Rated Power; 50 oz-in (0.35 N.m) Continuous Torque; 2900 RPM Peak Speed; 1,000-line Encoder by Leadshine Technology, Inc.       Datasheet (write an review)
	Features 54 mm motor body diameter 1000 line increamental encoder with A, B signals 120W rated power 30.3 VDC rated voltage 50 oz-in rated torque / 411 oz-in peak 2900 RPM rated speed / 3500 peak 0.315-inch (8 mm) shaft Quick acceleration High accuracy; smooth movement; quiet movement Pittman 54mm brush DC motor installation compatible	Buy Online Usually shipped in 1-2 days from USA Regular Price: $179.00     Online Prices: $159.00 Qty  1 - 4   $141.00 Qty  5 - 9   You save 11.17%   Contact us for qty 10 & up   Stock: In stock The selected item has been added to your shop cart successfully. To choose Choose one of the following options to continue.    Qty:

Matching Servo Drive(s)servo motor drive

AMT offers matching servo drives for DCM50207D-1000 to satisfy your application needs. Those servo drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all servo drives that AMT offers, please click here.

Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase DCS810: Leadshine DCS810 Brushed Servo Drive with Max 80 VDC Input Voltage and 20A Peak Current $122.00 / $116.00 Order Quantity:     DCS810S: Leadshine DCS810S Brushed Servo Drive with Max 80 VDC Input Voltage and 20A Peak Current $112.00 / $106.00 Order Quantity:

The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

DC-P120: Leadshine 120W Brush Servo Motor & Drive Set - One DCS810 Servo Drive, and One DCM50207D-1000 Servo Motor of 54 MM Diameter with 1000-Line Differential-Ended Encoder

1 Pc. / 5 Pc. Price: $269.00 / $256.00
