NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,133 Oz-In (8 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder

ES-P23480 : NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,133 Oz-In (8 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder
by Leadshine Technology, Inc. (write an review)
ES-P23480
Features
  • 1,133 oz-in (8 Nm) NEMA 34 easy servo motor & matching easy servo drive included
  • Step & direction control
  • 1000-line encoder (A, B channels) for the easy servo motor
  • 24-80 VDC input voltage & and 8.2A peak current for the easy servo drive
  • Fully closed position loop for no loss of step
  • High torque & excellent high speed performance
  • Extra low motor heating & noise
  • Quick response and fast acceleration
  • High low standstill stiffness
  • No gaining, no hunting, no overshooting, zero settling time.
  • No tuning for plug-and-play
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $438.00
  Online Prices: $359.00 Qty  1 - 4
  $349.00 Qty  5 - 9
  $329.00 Qty 10 - 24
  $319.00 Qty 25 - 49
  You save 18.04 %
  Contact us for qty 50 & up
  Stock: In stock
Qty:
* Motor & power extension cables required
OverviewIncluded Products
Overview

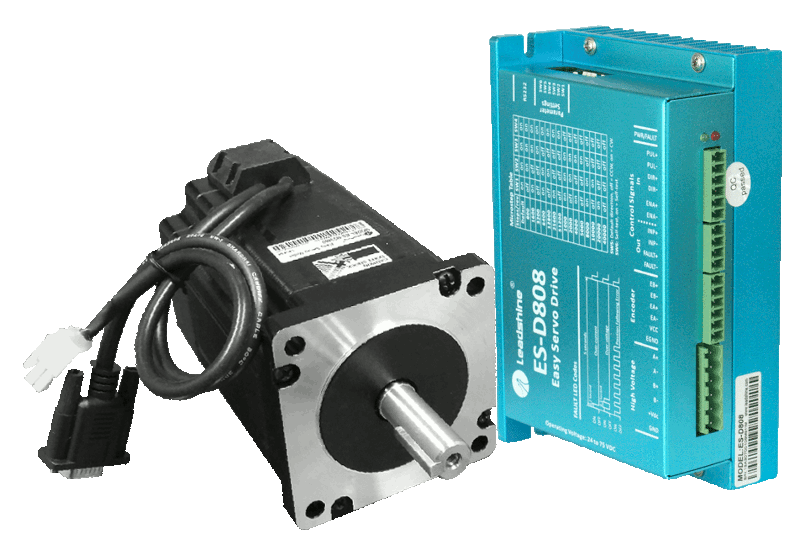

The Leadshine ES-P23480 easy servo (closed loop stepper) set comes with one NEMA 34 ES-M23480 easy servo motor and one ES808 easy servo drive. The ES-M23480 easy servo motor has the holding torque of 1,133 oz-in (8Nm), and is integrated with 1,000 line encoder. Th ES-D808 easy servo drive can take 24-80 VDC voltage input, output load based current of 0.5-8.2A, and close the position loop.

Compared with open stepper loop systems, the ES-P23480 easy servo set outperforms in no loss of steps, higher no torque reservation, much lower heating & noise, better high speed performance, quicker response, and fast acceleration.

Compared with brushless AC/DC servo systems, the ES-P23480 easy servo set is also preferred in many applications because of is much lower cost, high low-middle speed torque, high stiffness at standstill, no gaining, no hunting, zero settling time, no configuration, and easy setup.

The Leadshine ES-P23480 easy servo set is pre-configured for optimized performance. It takes step & direction controls and is easy to implement is OEM applications. It has been widely implemented in applications such as CNC routers, CNC mills, CNC laser cutters / engraver, packing equipment...
Motor Accessories

Listed below are the available accessories for the ES-M23480 included in the motor & drive set.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
CABLEH-RZ1M5 CABLEH-RZ1M5: 4.9-Foot (1.5-Meter) Easy Servo Motor Power Cable $9.00 / $8.00 Order Quantity:
CABLEH-RZ3M0 CABLEH-RZ3M0: 9.8-Foot (3-Meter) Easy Servo Motor Power Cable $16.00 / $15.00 Order Quantity:
CABLEH-RZ5M0 CABLEH-RZ5M0: 16.4-Foot (5-Meter) Easy Servo Motor Power Cable $23.00 / $22.00 Order Quantity:
CABLEH-RZ8M0 CABLEH-RZ8M0: 26.2-Foot (8-Meter) Easy Servo Motor Power Cable $35.00 / $33.00 Order Quantity:
CABLEH-RZ10M0 CABLEH-RZ10M0: 32.8-Foot (10-Meter) Easy Servo Motor Power Cable $39.00 / $37.00 Order Quantity:
CABLEH-BM1M5 CABLEH-BM1M5: 4.9-foot (1.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $10.00 / $9.00 Order Quantity:
CABLEH-BM3M0 CABLEH-BM3M0: 9.8-foot (3-Meter) Encoder Cable for Leadshine Easy Servo Motors $16.00 / $15.00 Order Quantity:
CABLEH-BM5M5 CABLEH-BM5M5: 18-foot (5.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $26.00 / $25.00 Order Quantity:
CABLEH-BM8M0 CABLEH-BM8M0: 26.2-Foot (8-Meter) Encoder Cable for Leadshine Easy Servo Motors $37.00 / $35.00 Order Quantity:
CABLEH-BM10M0 CABLEH-BM10M0: 32.8-Foot (10-Meter) Encoder Cable for Leadshine Easy Servo Motors $43.00 / $41.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Drive Accessories

Listed below are the available accessories for the ES-D808 included in the motor & drive set.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0609505-B3 1.4.4-0609505-B3: RS232 Cable for Tuning Leadshine Stepper/Servo Drive $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for ES-P23480. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
RPS608 RPS608: Leadshine RPS608 60VDC /8.5A Regulated Switching Power Supply with 85-132 / 176-265 VAC $103.00 / $97.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS487 SPS487: Leadshine SPS487 Ultra Compact 48VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $89.00 / $84.00 Order Quantity:
PS408-12 PS408-12: Leadshine PS408-12 Linear Power Supply;36 VDC/8A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
PS806-12 PS806-12: Leadshine PS806-12 Linear Power Supply;68 VDC/6A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $138.00 / $131.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
