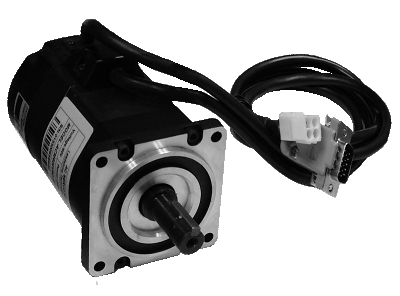

Leadshine AC Servo Motors (Low Voltage)

Leadshine Technology, Inc. They are at the 60 mm frame size and available in 100/200/400W rated power. The standard models are integrated with 2,500-line encoders, with 1000-line encoders optional.

Leadshine low voltage AC servo motors are at high quality and are cost effective. When driven by low voltage brushless servo drives, those servo motors can run smoothly with high precision at speed as low as 1 RPM, or as high as 4,000 RPM. They motors are at industrial quality and have been implemented in many industrail OEM applications around the world.
 ModelFrame SizeRated
Power
(W)
Continuous
Torque
(Nm / lb-in)
Peak
Torque
(Nm / lb-in)
Rated
Voltage
Rated
Speed
(RPM)
Peak
Speed
(RPM)
Encoder
Resolution
(line)
Length
(Inch)
1 / 5 Pc. Price
(USD)

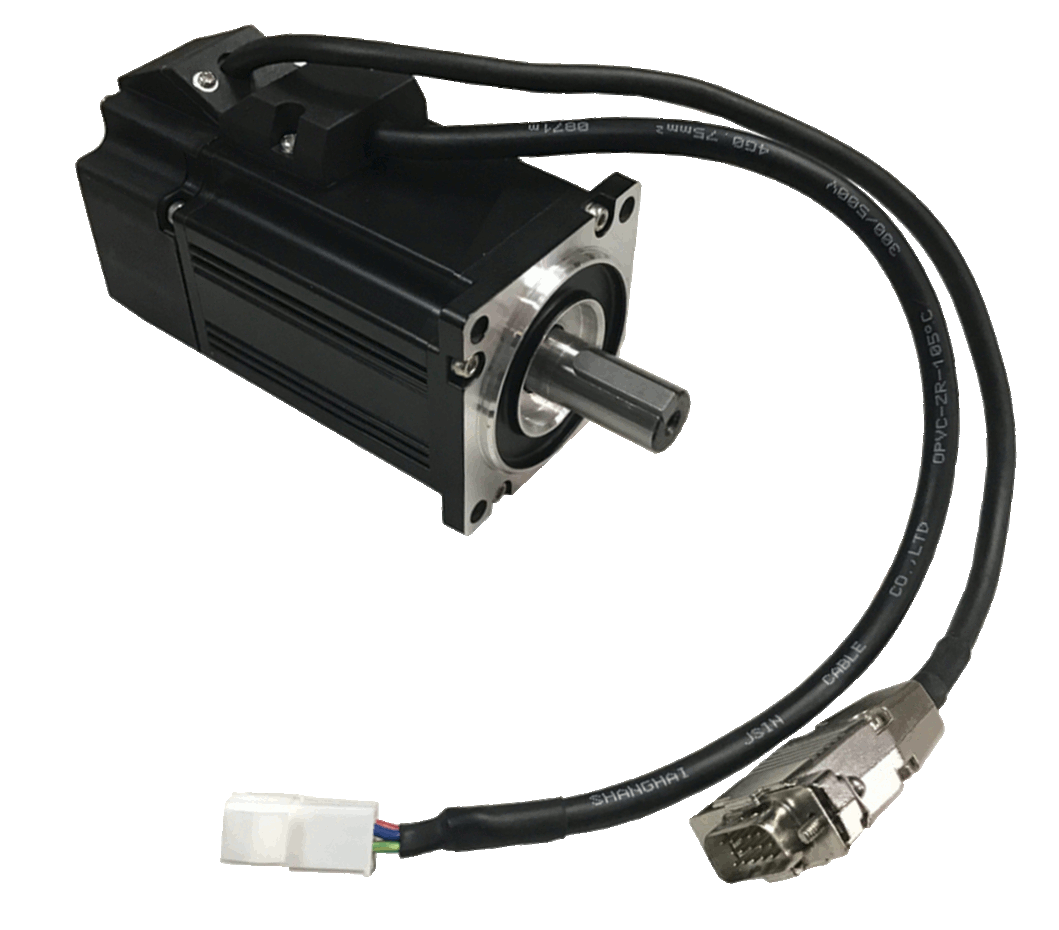

ACM601V36-T-2500 ACM601V36-T-250060 mm1000.32 / 2.830.96 / 8.536 VDC3000500025003.52$219.00 / $208.00

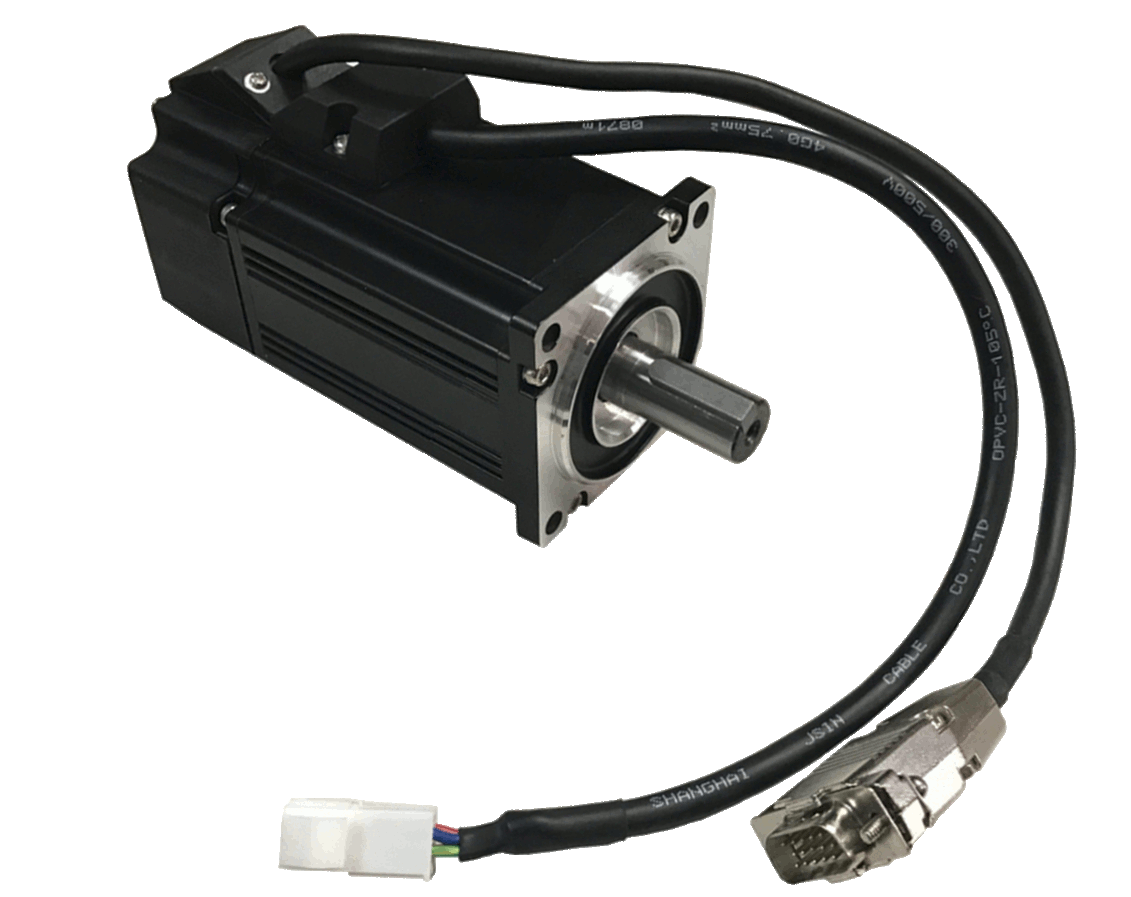

ACM602V36-T-2500 ACM602V36-T-250060 mm2000.64 / 5.671.92 / 17.036 VDC3000500025004.07$239.00 / $228.00

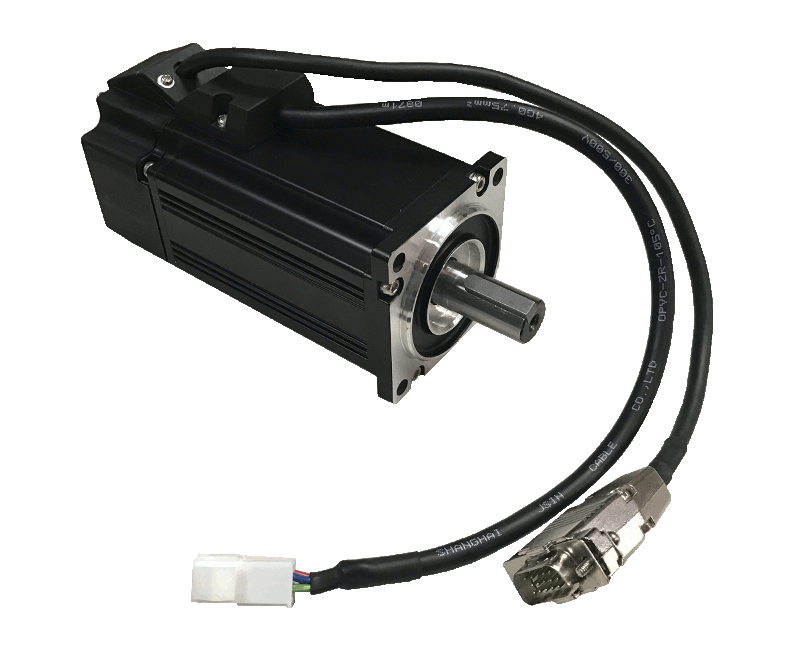

ACM604V60-T-2500 ACM604V60-T-250060 mm4001.27 / 11.243.80 / 33.660 VDC3000500025005.18$269.00 / $247.00
ACM601V36-2500 ACM601V36-250060 mm1000.318 / 2.810.95 / 8.4136 VDC3000400025003.41$219.00 / $208.00
ACM602V36-2500 ACM602V36-250060 mm2000.64 / 5.661.91 / 16.936 VDC3000400025003.96$239.00 / $228.00
ACM604V60-2500 ACM604V60-250060 mm4001.27 / 11.243.82 / 33.8160 VDC3000400025005.03$269.00 / $247.00
