Leadshine 120/230 VAC Input Easy Servo Motors (Stepper Motors With Encoders)

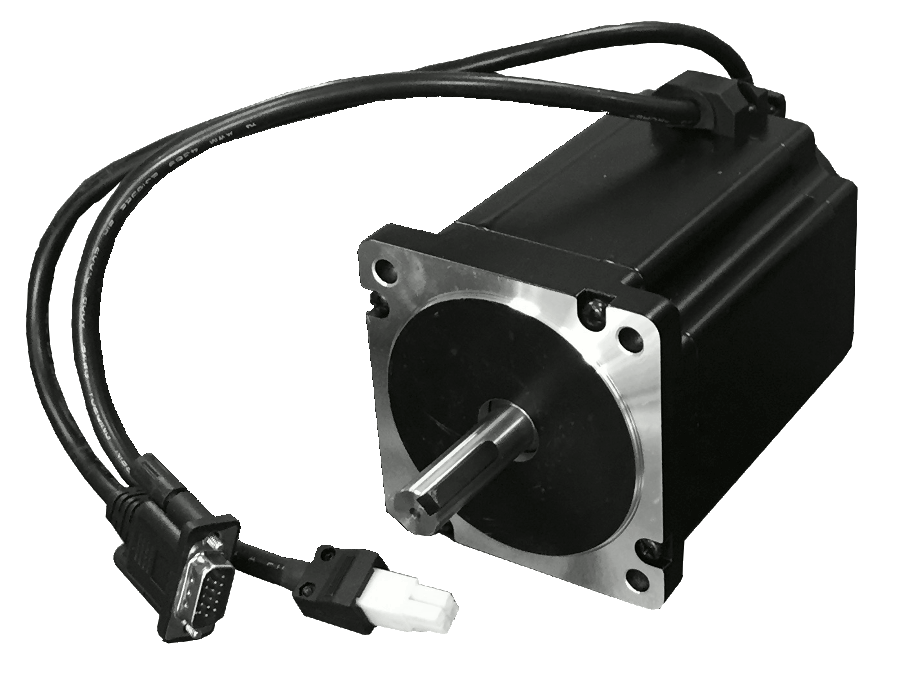

Leadshine ES-MH series easy servo motors are specially designed stepper motors integrated with high resolution encoders (1000-line for standard models), which can be powered by Leadshine 110 / 120 VAC input easy servo drives. They are made of high quality materials with advanced manufacturing technology, those motors can move at very high precision with much lower motor heating than normal stepper motors.

When powered by ES-DH series easy servo Drives, those easy servo motors can be used to provide closed loop control with huge torque. They are ideal for upgrading system performance of open loop steppers, or replace many brushless servo systems requiring high low speed high torque.

Leadshine ES-MH series servo motors can also be driven by normal open loop stepper drives. With high resolution encoders integrated seamlessly, they can provide real time motion position to connected motion controller, PLC, or external devices.

Leadshine ES-MH series easy servo motors are available in frame sizes NEMA 34 and 42 with holding torque up to 20 NM (2,832 oz-in).

Phase:
Frame Size:
Use the above filters to refine displayed products
 ModelPhaseNema
Size
(Nema)
Holding
Torque
(Nm / oz-in)
Input
Voltage
Phase
Current
(A)
Inductance
(mH)
Available
Shaft Size
(mm / inch)
Encoder
Resolution
(Line)
Length
(in)
1 / 5 Pc. Price
(USD)
HSM23442H HSM23442H2344.2 / 595110/120 VAC22012.70 / 0.50010003.78$189.00 / $172.00
ES-MH23480 ES-MH234802348.0 / 1133110/120 VAC4.83.114.00 / 0.55110005.51$229.00 / $218.00
ES-MH234120 ES-MH23412023412 / 1700110/120 VAC67.814.00 / 0.55110005.91$269.00 / $255.00
HSM23487H HSM23487H2348.7 / 1232110/120 VAC2.82012.70 / 0.50010005.20$209.00 / $198.00
ES-MH33480 ES-MH334803348.0 / 1133220/230 VAC3.018.3314.00 / 0.55110006.81$259.00 / $246.00
ES-MH342120 ES-MH34212034212 / 1700220/230 VAC4.21319.00 / 0.74810006.34$289.00 / $274.00
ES-MH342200 ES-MH34220034220 / 2832220/230 VAC5.21819.00 / 0.74810009.65$339.00 / $322.00
