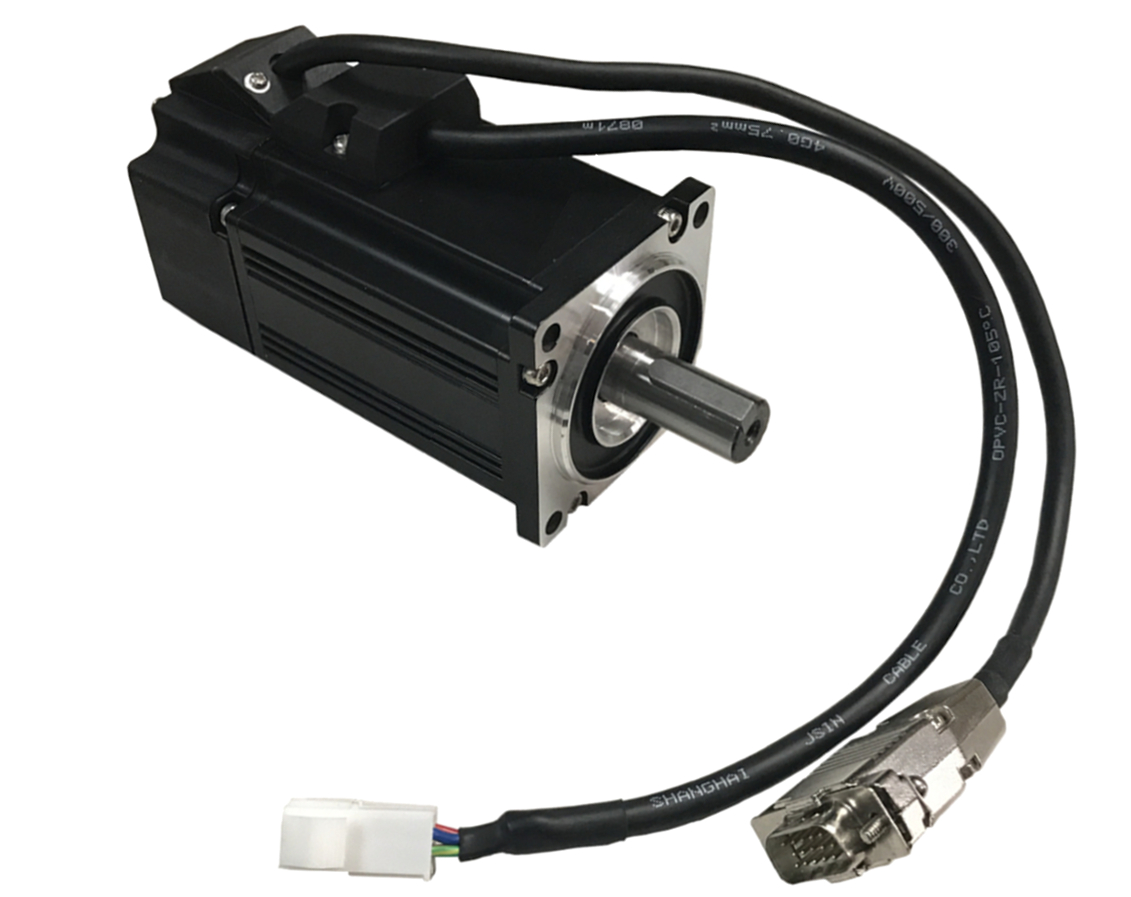

Leadshine ACM602V36-T-2500 200W Brushless AC Servo Motor with 2,500-Line Encoder and 5,000 RPM Peak Speed

ACM602V36-T-2500 : Leadshine ACM602V36-T-2500 200W Brushless AC Servo Motor with 2,500-Line Encoder and 5,000 RPM Peak Speed by Leadshine Technology, Inc.       Datasheet (write an review)
	Features 60mm frame size 2500 line incremental encoder with A, B, indexing signals 200W rated power 36 VDC rated voltage 91 oz-in (0.64 N.m) rated torque / 272 oz-in (1.92 N.m) peak 3000 RPM rated speed / 5000 RPM peak 0.551-inch (14mm) shaft Quick acceleration High accuracy; smooth movement; quiet movement	Buy Online Usually shipped in 1-2 days from USA Regular Price: $249.00     Online Prices: $239.00 Qty  1 - 4   $228.00 Qty  5 - 9   You save 4.02%   Contact us for qty 10 & up   Stock: In stock The selected item has been added to your shop cart successfully. To choose Choose one of the following options to continue.    Qty:

Listed below are accessories for Leadshine ACM602V36-T-2500 200W Brushless AC Servo Motor with 2,500-Line Encoder and 5,000 RPM Peak Speed.

Model / Description 1 Pc. / 5 Pc. Price Purchase CABLE-ENC-02: 7.2-Foot (2.2-Meter) Encoder Extension Cable for Leadshine Brushless Servo Motors $14.00 / $13.00 Order Quantity:     CABLE-ENC-05: 16.4-Foot (5-Meter) Encoder Extension cable for Leadshine Brushless Servo Motors $25.00 / $23.00 Order Quantity:     CABLE-ENC-10: 32.8-Foot (10-Meter) Encoder Extension cable for Leadshine Brushless Servo Motors $38.00 / $36.00 Order Quantity:     CABLE-PWR-02: 7.2-Foot (2.2-Meter) brushless Servo Motor Power Cable $12.00 / $11.00 Order Quantity:     CABLE-PWR-05: 16.4-Foot (5-Meter) brushless Servo Motor Power Cable $19.00 / $18.00 Order Quantity:     CABLE-PWR-10: 32.8-Foot (10-Meter) Brushless Servo Motor Power Cable $36.00 / $34.00 Order Quantity:

Matching Servo Drive(s)servo motor drive

AMT offers matching servo drives for ACM602V36-T-2500 to satisfy your application needs. Those servo drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all servo drives that AMT offers, please click here.

Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase ACS806: Leadshine ACS806 Brushless Servo Drive Max 80VDC Input Voltage and 18A Peak Current $209.00 / $199.00 Order Quantity:

The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

BS-P200: Leadshine 200W Brushless AC Servo Set Including Servo Motor with 2,500-line Encoder & Servo Drive (Max 80VDC/18A)

1 Pc. / 5 Pc. Price: $389.00 / $369.00
