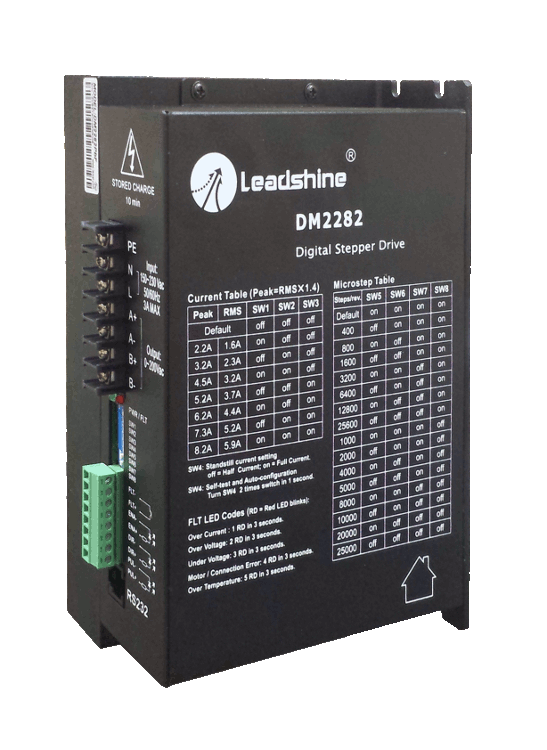

Leadshine DM2282 High Performance 2-Phase 32-Bit DSP Digital Stepper Drive with 90-230 VAC Input Voltage and Max 8.2A Output Current
DM2282
: Leadshine DM2282 High Performance 2-Phase 32-Bit DSP Digital Stepper Drive with 90-230 VAC Input Voltage and Max 8.2A Output Current
|
|
|
Features
- Step & direction or CW/CCW control
- DSP-based stepper control technology
- Anti resonance
- Automatic motor identification and self configuration
- Extra low noise
- Extra smooth movement
- Low drive & motor heating
- Maximum frequency: 200KHz
- Input voltage: 90 - 230 VAC / 115 - 325 VDC
- Output current: 7 selections of 2.20 - 8.20A via DIP switches; or any value of 0.5 - 8.20A via software configuration
- Micro steps: 16 selections of full - 128 step via DIP switches; or full - 512 step via software configuration
- Automatic idle current reduction
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$299.00
|
|
|
Online Prices:
|
$239.00
|
Qty 1 - 4
|
|
|
$229.00
|
Qty 5 - 9
|
|
You save
|
20.07%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationMechanicalConnectionDownload
Overview
By implementing the latest DSP current control technology, Leadshine DM2282 is a high performance
2-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple
to implement in OEM applications.
The DM2282 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping...
With the input voltage of 90 - 230 VAC / 115 - 325 VDC and output current of 2.20 - 8.20 A, it is capable of driving a wide range of 2-phase stepper motors
with high precision at extra smoothness, quietness, and very low motor heating.
Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output
for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper
control systems.
A DM2282 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 200 - 25600,
and 7 output current settings from 2.20 - 8.20. Also, a user can simply set the idle current to full (100%) or 50% of
the output current via a DIP switch.
Its motor auto identification and drive self-configuration feature allows quick and easy setup for various motors at optimal performance.
For advanced users, Leadshine offers tuning software for performance fine-tuning. A user can tune a stepper motor's
three resonance areas (usually around 0.5 rps, 1 rps, and 2 rps) to reduce noise and vibration, set microstep resolution to any value
from 200 to 104,000 (increase by 200), and configure output current to any value of 2.20 - 8.20A (increased by 0.1A);
and idle current of 1-100% of output current.
|
Specification
| Model: | DM2282 | | Phase: | 2 | | Control Mode: | Step & Direction | | Max Input Frequency: | 200KHz | | Input Voltage Range: | 90 - 230 VAC /
115 - 325 VDC | | Software Cofig. Resolution Range: | 200 - 102,400 (increased by 200) | | # of DIP Switch Resolution Configurations: | 16 | | DIP Switch Resolution Setings: | 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000 | | Software Cofig Current Range: | 0.5 - 8.20 A (increased by 0.1 A) | | # of DIP Switch Current Configurations: | 7 | | DIP Switch Current Configurations: | 2.2A, 3.2A, 4.2A, 5.3A, 6.2A, 7.2A, 8.2A | | Logic Current Range: | 7-16mA (10mA typical) | | Logic Voltage Range: | 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low | | Communication Type: | RS232 | | Pulse enabled at: | Rising edge | | Idle Current Percentage: | 50 % | | Software Config. Idle Current Percentage: | 0-100% | | # of Digital Inputs: | 3 | | # of Digital Onputs: | 1 | | Step Width: | 2,500 ns | | Minimal Direction Setup Time: | 5,000 ns | | Protection: | Over-current, over-voltage, under-voltage, phase-error, and over-temperature protection | | Isolation Resistance: | 500M Ohm | | Environment: | Avoid dust, oil fog and corrosive gases | | Ambient Temporature: | 0-50°C | | Humidity: | 40–95% RH | | Operating Temporature: | 0-70°C | | Vibration: | 5.9 m/s2 Max | | Storage Temporature: | -20-65°C | | Specification: | 7.87 X 5.39 X 3.19 Inches | | Weight: | 2.86 lbs |

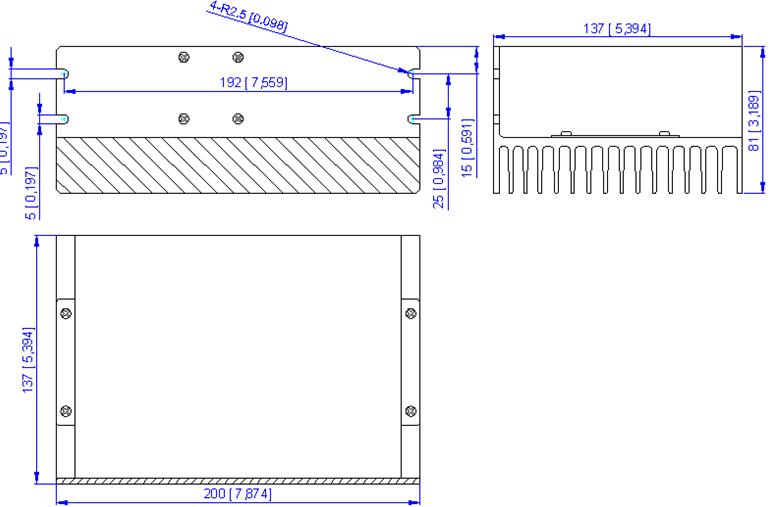

Mechanical Specification
Unit: mm
1 inch = 25.4 mm

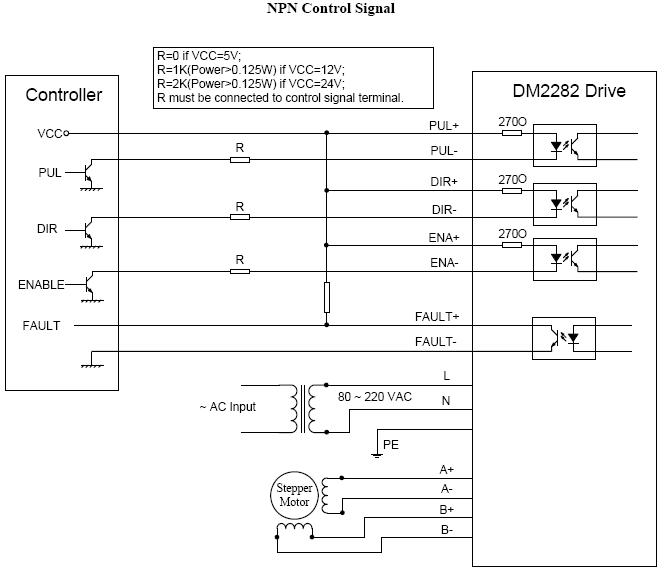

Download(s) for
| Datasheet: |
DM2282d_P.pdf |
|
Hardware installation manual:
|
DMSeries.pdf
|
| Tuning software: |
ProTuner_DM_Setup_2013-11-06.zip |
|
|
