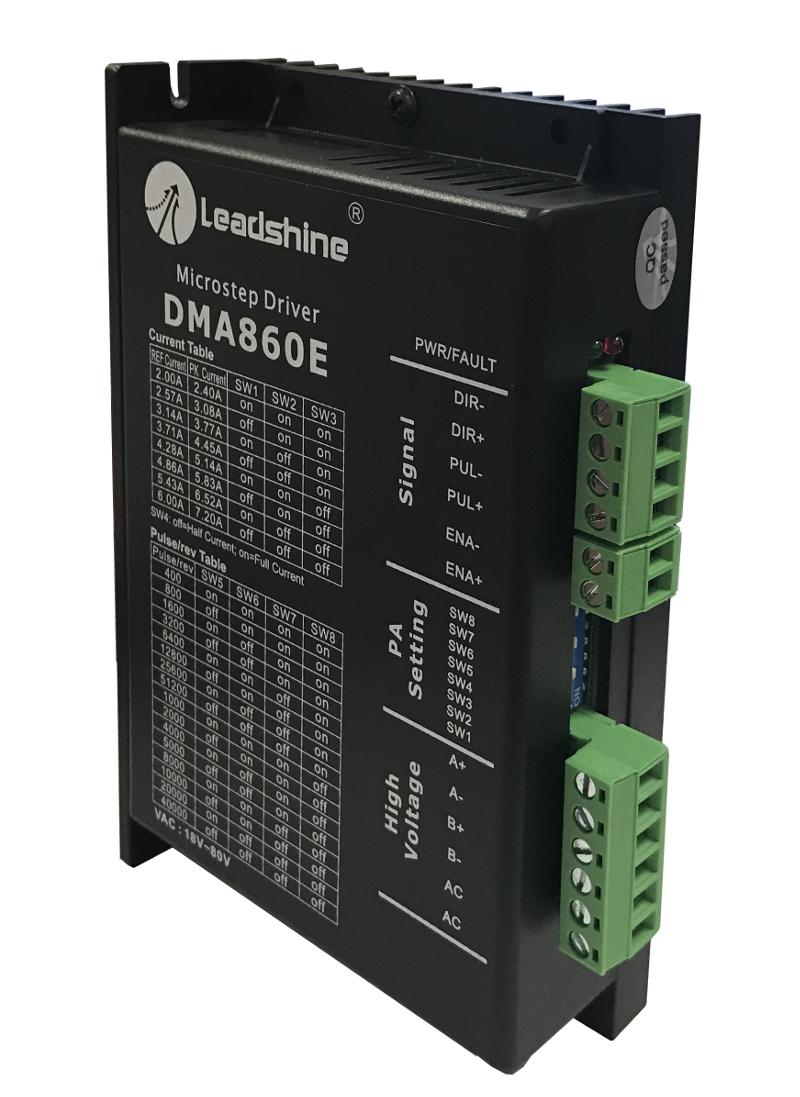

DMA860E : Leadshine DMA860E 2-Phase Digital Stepper Drive with 50- 110 VDC or 36-80 VAC Voltage and 2.4-7.2A Current

by Leadshine Technology, Inc.

User Manual

Features

Anti-Resonance for optimal torque, smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
Step & direction (PUL/DIR) and CW/CCW (via internal jumper set) control. Step & direction by default
Multi-Stepping for smooth motor movement
Opto Isolation for input control signals
Input voltage 18-80VAC or 24-110VDC
16 selectable micro-step resolutions of 400-51,200 via DIP switches
8 selectable output current settings of 2.4 – 7.2A via DIP switches
Soft-start with no “jump” when powered on
Pulse input frequency up to 200 KHz. TTL compatible and optically isolated inputs
Automatic idle-current reduction
Protections for over-voltage and over-current

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$89.00~~

Online Prices:

$89.00

Qty 1 - 4

$86.00

Qty 5 - 9

$83.00

Qty 10 - 24

$80.00

Qty 25 - 49

$78.00

Qty 50+

Stock:

In stock

Qty:

OverviewSpecificationMechanicalDownload

Overview

The DMA860E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 18-80VAC or 24-110VDC and it can output up to 7.2A current. All the micro step and output current are done via DIP switches. Therefore, the DMA860E are ideal choices for applications requiring simple step & direction control of NEMA 23, 24, 34, and 42 stepper motors.

Specification

Model:	DMA860E
Phase:	2
Control Mode:	Step & Direction
Max Input Frequency:	200KHz
Input Voltage Range:	18 - 80 VAC / 24 - 110 VDC
Suggested Power Supply Voltage Range:	36-90 VDC /24-60 VAC
# of DIP Switch Resolution Configurations:	16
DIP Switch Resolution Setings:	400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
# of DIP Switch Current Configurations:	8
DIP Switch Current Configurations:	2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Logic Current Range:	7-16mA (10mA typical)
Logic Voltage Range:	4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low
Pulse enabled at:	Rising edge
Idle Current Percentage:	50 %
# of Digital Inputs:	3
Step Width:	2,500 ns
Minimal Direction Setup Time:	5,000 ns
Isolation Resistance:	500M Ohm
Environment:	Avoid dust, oil fog and corrosive gases
Ambient Temporature:	0-50°C
Humidity:	40–95% RH
Operating Temporature:	0-70°C
Vibration:	5.9 m/s² Max
Storage Temporature:	-20-65°C
Specification:	5.94 X 3.82 X 2.24 Inches
Weight:	1.13 lbs

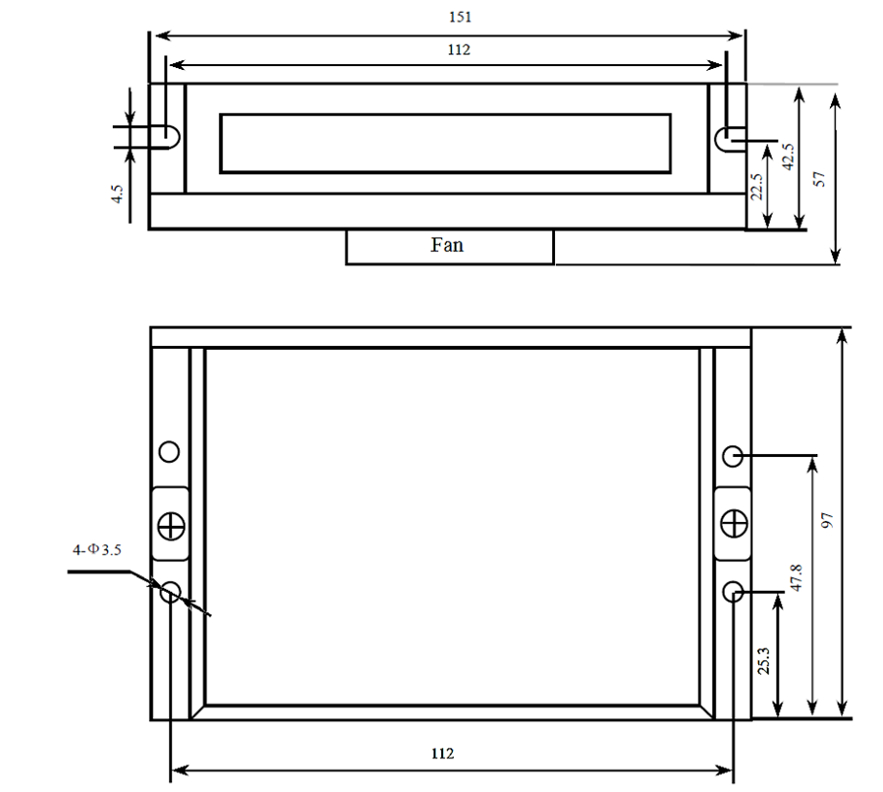

Mechanical Specification

Unit: mm
1 inch = 25.4 mm

Download(s) for

User manual:

DMA860E_m.pdf

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for DMA860E. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.
