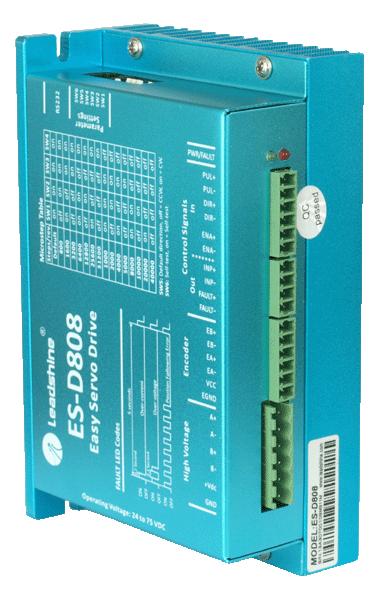

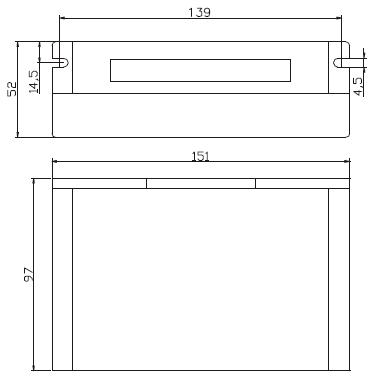

Leadshine ES-D808 Easy Servo Drive (Closed loop Stepper Drive) with Maximum 24-80 VDC Input Voltage, and 8.2A Peak Current

ES-D808 : Leadshine ES-D808 Easy Servo Drive (Closed loop Stepper Drive) with Maximum 24-80 VDC Input Voltage, and 8.2A Peak Current
by Leadshine Technology, Inc. (write an review)
ES-D808
Features
  • Stepper based servo control for stepper motors with encoders
  • Step & direct, or CW/CCW control
  • Closed position loop for no loss of steps
  • 24 - 80 VDC input voltage
  • Load based output current of 0.50 - 8.20 A
  • default 200KHz input frequency; 500Khz optional
  • Quick response and acceleration
  • No torque reservation
  • Extra low drive motor heating & noise
  • No hunting, no overshooting, almost zero settling time
  • No tuning & "plug-and-play" for almost all applications
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $209.00
  Online Prices: $169.00 Qty  1 - 4
  $159.00 Qty  5 - 9
  $149.00 Qty 10 - 24
  $139.00 Qty 25 - 49
  You save 19.14 %
  Contact us for qty 50 & up
  Stock: In stock
Qty:
OverviewSpecificationMechanicalConnectionDownload
Overview
By applying servo control on easy servo motors (stepper motors with encoders), Leadshine ES-D808 easy servo drive combines features of both open loop stepper drives and brushless AC servo drives. It takes step and direction control commands, 24-80 VDC input voltage, and outputs load-based current up to 8.2A. It is capable of powering 2-phase easy servo motors of NEMA 23/24/34, closing the position loop, and eliminating position tracking errors in real time.

Similar to brushless AC servo drives, an ES-D808 servo drive can take encoder feedback from driven DC input easy servo motors and close the position loop to eliminate possibility of lose of movement synchronization. Therefore, loss of steps commonly seen in open-loop stepper systems will never occur in ES-D808 driven easy servo systems. Compared with constant output current in open loop stepper drive, output current from a ES-D808 servo drive to the driven motor is load based. When torque requirement is low, the output current is automatically lowered to "just enough". But when the torque requirement is high, ES-D808 can boost the output current up to 8.2A. This can significantly lower down motor heating by up to 50% over open-loop stepper systems. There is no torque reservation needed for an ES-D808 driven easy servo system. You can always implement 100% of the driven stepper motor and thus improve system high speed performance by as much as 30% over open lop stepper systems. Smoothness, quietness (50% improvement), and acceleration (30% improvement) are also significantly improved in ES-D808 easy servo systems.

Compared with traditional brushless servo systems, cost of ES-D808 easy servo systems is much lower. They outperforms traditional brushless servo systems with the feature of much higher low-middle speed torque, high stiffness, quicker response time, no position hunting, no tuning / easy setup, no overshooting, and zero settling time.

ES-D808 easy servo systems have been widely adopted by many OEM clients to upgrade their open-loop stepper systems like CNC routers, laser cutting/marking/engraving machines, milling machines, plasmas, packaging equipment, wide-format inject printers... Many Leadshine clients have also chosen ES-D808 powered easy servo systems to replace their brushless servo systems to take easy servo's unique features.
Accessories

Listed below are accessories for Leadshine ES-D808 Easy Servo Drive (Closed loop Stepper Drive) with Maximum 24-80 VDC Input Voltage, and 8.2A Peak Current.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0609505-B3 1.4.4-0609505-B3: RS232 Cable for Tuning Leadshine Stepper/Servo Drive $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Easy Servo Motorsstepper motor with encoder / easy servo motor

AMT offers the following companion easy servo motors for ES-D808,to provide you fully closed loop controls. To see all Leadshine easy servo motors that AMT offer, please click here

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
ES-M22310 ES-M22310: Leadshine NEMA 23 Easy Servo Motor; 2 Phase; 141 Oz-In Torque; 1,000-Line Encoder $119.00 / $112.00 Order Quantity:
ES-M22320 ES-M22320: Leadshine NEMA 23 Easy Servo Motor; 2 Phase; 283 Oz-In Torque; 1,000-Line Encoder $139.00 / $131.00 Order Quantity:
ES-M22430 ES-M22430: Leadshine NEMA 24 Easy Servo Motor; 2 Phase; 425 Oz-In Torque; 1,000-Line Encoder; 0.325'' Shaft $159.00 / $151.00 Order Quantity:
ES-M23440 ES-M23440: Leadshine NEMA 34 Easy Servo Motor; 2 Phase; 566 Oz-In Torque; 1,000-Line Encoder $179.00 / $170.00 Order Quantity:
ES-M23480 ES-M23480: Leadshine NEMA 34 Easy Servo Motor; 2 Phase; 1,133 Oz-In Torque; 1,000-Line Encoder $199.00 / $189.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for ES-D808. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
RPS608 RPS608: Leadshine RPS608 60VDC /8.5A Regulated Switching Power Supply with 85-132 / 176-265 VAC $103.00 / $97.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS487 SPS487: Leadshine SPS487 Ultra Compact 48VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $89.00 / $84.00 Order Quantity:
SPS487-L SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input $89.00 / $84.00 Order Quantity:
SPS705 SPS705: Leadshine SPS705 Ultra Compact 68VDC / 5A Unregulated Switching Power Supply 180-250 VAC Input $98.00 / $93.00 Order Quantity:
SPS705-L SPS705-L: Leadshine SPS705-L Ultra Compact 68 VDC / 3.0A Unregulated Switching Power Supply 90-130 VAC Input $98.00 / $93.00 Order Quantity:
PS804-5 PS804-5: Leadshine PS804-5 Linear Power Supply;68 VDC/4A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $95.00 / $90.00 Order Quantity:
PS806-12 PS806-12: Leadshine PS806-12 Linear Power Supply;68 VDC/6A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $138.00 / $131.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought Motor & Drive Sets Including ES-D808

The following motor & drive sets are frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

ES-P22430 ES-P22430: NEMA 24 (60mm Frame) Easy Servo Set. One NEMA 24 Easy Servo Motor of 425 Oz-In (3 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder
1 Pc. / 5 Pc. Price:
$329.00 / $319.00
ES-P23440 ES-P23440: NEMA 34 Easy Servo. One Easy Servo Motor & One easy Servo Drive; 566 Oz-In (4 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder
1 Pc. / 5 Pc. Price:
$329.00 / $319.00
ES-P23480 ES-P23480: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,133 Oz-In (8 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder
1 Pc. / 5 Pc. Price:
$359.00 / $349.00
