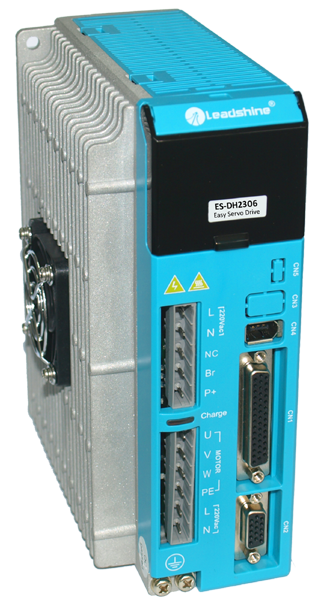

Leadshine ES-DH2306 Easy Servo Drive (Closed loop Stepper Drive) with Direct 220/230 VAC Input, and 6.0A Peak Current
ES-DH2306
: Leadshine ES-DH2306 Easy Servo Drive (Closed loop Stepper Drive) with Direct 220/230 VAC Input, and 6.0A Peak Current
|
|
|
Features
- Stepper based servo control for stepper motors with encoders
- Step & direct, or CW/CCW control
- Closed position loop for no loss of steps
- 150 - 230 VAC input voltage
- Load based output current of 0.50 - 6.00 A
- default 200KHz input frequency; 500Khz optional
- Quick response and acceleration
- No torque reservation
- Extra low drive motor heating & noise
- No hunting, no overshooting, almost zero settling time
- No tuning & "plug-and-play" for almost all applications
- No power supply for direct AC input
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$339.00
|
|
|
Online Prices:
|
$299.00
|
Qty 1 - 4
|
|
|
$289.00
|
Qty 5 - 9
|
|
|
$269.00
|
Qty 10 - 24
|
|
|
$249.00
|
Qty 25 - 49
|
|
You save
|
11.80%
|
| |
Contact us for qty 50 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationMechanicalConnectionDownloadIncluded Free Accessories
Overview
By applying servo control on easy servo motors (stepper motors with encoders), Leadshine ES-DH2306 easy servo drive combines features of both open loop stepper drives and brushless AC servo drives. It takes step and direction control commands, direct 220/230 VAC input voltage, and outputs load-based current up to 6.0A. It is capable of powering 3-phase easy servo motors of NEMA 34/42, closing the position loop, and eliminating position tracking errors in real time.
Similar to brushless AC servo drives, an ES-DH2306 easy servo drive can take encoder feedback from driven high voltage easy servo motors and close the position loop to eliminate possibility of lose of movement synchronization. Therefore, the position loop between the motor and drive is fully closed and "lose of step" in open loop stepper systems is totally eliminated. The ES-DH2306 easy servo drive adopts advanced control algorithm and just outputs "just enough" to the driven motor to to meet the torque requirement. So, easy servo systems driven by ES-DH2306 can response and accelerate much faster than open loop stepper systems in high precision and with extra low heating, extra smooth, much higher torque and speeds.
Compared with conventional brushless servo systems, easy servo / closed loop systems powered by ES-DH2306 servo drive can output much higher low to medium speed torque (1-2000 RPM). There is no overshooting, no hunting, and zero settling time. Also, no tuning and plug-and-play for almost all applications makes ES-DH2306 powered easy servo/closed loop systems give advantages over conventional brushless servo systems.
The ES-DH2306 easy servo drive takes direct ES-DH2306 voltage input without the need of a VDC power supply. Each drive has a built-in LED panel to allow easy custom configuration, fine tuning, and motion real time status monitoring. In addition, ES-DH2306 can be easily configured as an open loop stepper drive to power three phase stepper motors.
Specification
| Model: | ES-DH2306 | | Phase: | 3 | | Control Mode: | Step & Direction | | Max Input Frequency: | 200KHz | | Encoder Feedback: | Yes. Fully close the loop between the drive and drive motor | | Input Voltage Range: | 150 - 240 VAC | | Peak Current: | 6.00 A | | Software Cofig Resolution Range: | 200 - 102,400 (increased by 200) | | Default Step Resolution: | 4000 | | Default Holding Current Percentage: | 20 % | | Communication Type: | RS232 | | Pulse enabled at: | Rising edge | | Isolation Resistance: | 500M Ohm | | Environment: | Avoid dust, oil fog and corrosive gases | | Ambient Temporature: | 0-50°C | | Humidity: | 40–95% RH | | Operating Temporature: | 0-70°C | | Vibration: | 5.9 m/s2 Max | | Storage Temporature: | -20-65°C | | Specification: | 6.69 X 5.51 X 2.76 Inches | | Weight: | 3.96 lbs |

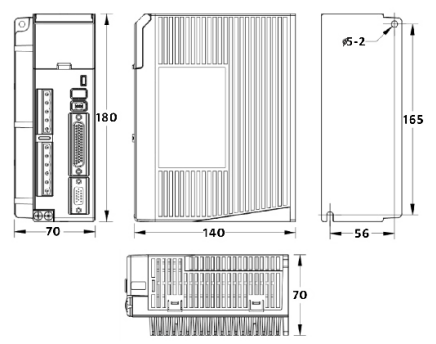

Mechanical Specification
Unit: mm
1 inch = 25.4 mm
Download(s) for
| Datasheet: |
ES-DH2306d_V1.2.pdf |
|
Hardware installation manual:
|
ES-DHhm_V1.3.pdf
|
|
Tuning software manual:
|
ES-Dsm_V1.0.pdf
|
| Tuning software: |
ProTuner_ES-Setup_V1.3.zip |
Free Accessories
Besides discounts for the included products, the following accessory items
are also included free for saving you additional costs. Based on your application/machine requirements,
you may also need to add, or update to accessories which are listed below.- 1.4.0-4422200-17: 44-pin Control Signal Connector for Leadshine Servo/Stepper Drives
|
|
Accessories
Listed below are accessories for Leadshine ES-DH2306 Easy Servo Drive (Closed loop Stepper Drive) with Direct 220/230 VAC Input, and 6.0A Peak Current.
|
Matching Easy Servo Motorsstepper motor with encoder / easy servo motor
AMT offers the following companion easy servo motors for ES-DH2306,to provide you fully closed loop controls. To see all Leadshine easy servo motors that AMT offer, please
click here
|
Frequently Bought Motor & Drive Sets Including ES-DH2306
The following motor & drive sets are frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
ES-PH33480: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,133 Oz-In (8 N.m) Holding Torque; Step & Direction Control; 220/230 VAC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$499.00 / $479.00
|
|
ES-PH342120: NEMA 42 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,700 Oz-In (12 N.m) Holding Torque; Step & Direction Control; 220/230 VAC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$549.00 / $529.00
|
|
|
ES-PH342200: NEMA 42 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 2,832 Oz-In (20 N.m) Holding Torque; Step & Direction Control; 220/230 VAC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$599.00 / $579.00
|
|
|
