Leadshine NEMA 23 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 283 Oz-In (2.0Nm) Torque; 1,000-Line Encoder

ES-M22320 : Leadshine NEMA 23 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 283 Oz-In (2.0Nm) Torque; 1,000-Line Encoder
by Leadshine Technology, Inc. (write an review)
ES-M22320
 Features
  • 2-Phase NEMA 23 frame size
  • 283 oz-in (2.0 Nm) holding torque
  • Speed range: 0-3,000 RPM
  • Integrated 1,000-line incremental encoder (A, B channels)
  • 0.315 inch (8 mm), or 0.25 inch (6.35 mm) shaft
  • Quiet movement and low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $149.00
  Online Prices: $139.00 Qty  1 - 4
  $131.00 Qty  5 - 9
  You save 6.71%
  Contact us for qty 10 & up
  Stock: In stock
Qty:

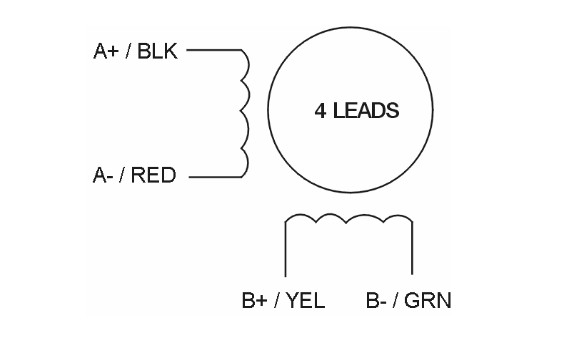

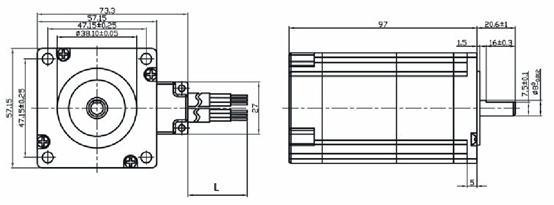

OverviewSpecificationsMechanicalWiring DiagramDownload
Overview
The Leadshine ES-M22320 easy servo motor is a 283 oz-in (1.0 N.m) 2-phase NEMA 23 stepper motor with 1,000-line incremental encoder (A ,B channels).

When driven by Leadshine low voltage easy servo drives (closed loop stepper drives), the position loop between ES-M22320 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.

Leadshine ES-M22320 can also driven by regular open loop 2-phase stepper drives and feed back encoder signals to motion controllers, or external devices.

The ES-M22320 easy servo motor is built with high quality material and can move smoothly with very low noise and heating.
Accessories

Listed below are accessories for Leadshine NEMA 23 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 283 Oz-In (2.0Nm) Torque; 1,000-Line Encoder.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
CABLEH-BM1M5 CABLEH-BM1M5: 4.9-foot (1.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $10.00 / $9.00 Order Quantity:
CABLEH-BM3M0 CABLEH-BM3M0: 9.8-foot (3-Meter) Encoder Cable for Leadshine Easy Servo Motors $16.00 / $15.00 Order Quantity:
CABLEH-BM5M5 CABLEH-BM5M5: 18-foot (5.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $26.00 / $25.00 Order Quantity:
CABLEH-BM10M0 CABLEH-BM10M0: 32.8-Foot (10-Meter) Encoder Cable for Leadshine Easy Servo Motors $43.00 / $41.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Easy Servo Drive(s)closed loop stepper drive

AMT offers the following companion easy servo drive(s) for ES-M22320, to provide you fully loop closed loop controls. To see all Leadshine easy drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
ES-D808 ES-D808: Leadshine ES-D808 Easy Servo Drive (Closed-Loop Stepper Drive) with Max 80 VDC/8.2A $169.00 / $159.00 Order Quantity:
ES-D1008 ES-D1008: Leadshine ES-D1008 Easy Servo Drive (Closed-Loop Stepper Drive) with Max 70VAC or 100VDC / 8.0A $189.00 / $177.00 Order Quantity:
