Leadshine NEMA 24 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 425 Oz-In (3.0Nm) Torque; 1,000-Line Encoder; 0.325'' Shaft
ES-M22430
: Leadshine NEMA 24 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 425 Oz-In (3.0Nm) Torque; 1,000-Line Encoder; 0.325'' Shaft
|
|
|
Features
- 2-Phase NEMA 24 frame size
- 425 oz-in (3.0 Nm) holding torque
- Speed range: 0-3,000 RPM
- Integrated 1,000-line Incremental Encoder with A , B channells
- Strong 0.315 inch (8 mm) shaft
- Quiet movement and low motor heating
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$169.00
|
|
|
Online Prices:
|
$159.00
|
Qty 1 - 4
|
|
|
$151.00
|
Qty 5 - 9
|
|
You save
|
5.92%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview

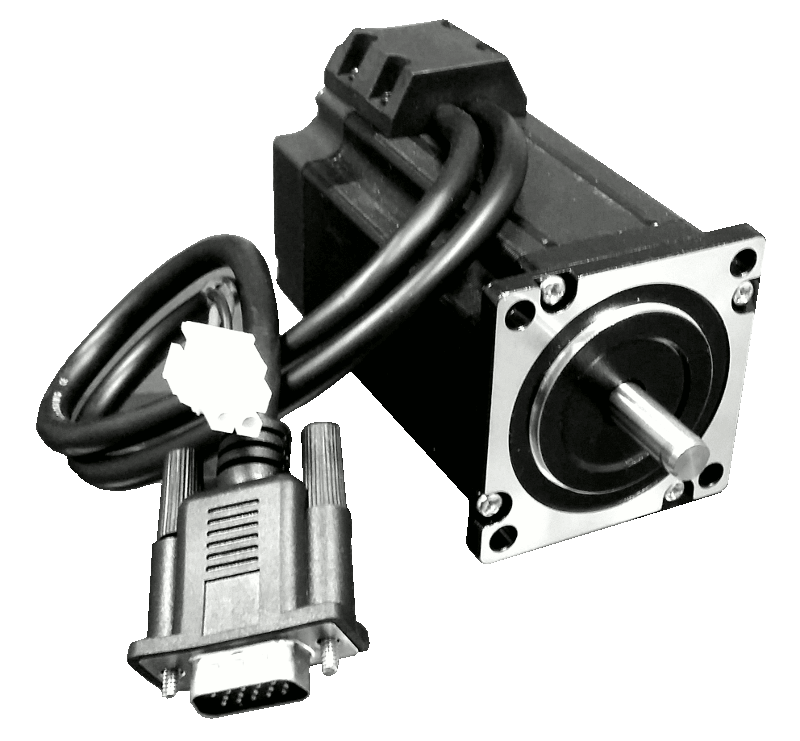

The Leadshine easy servo motor ES-M22430 is a 425 oz-in (3.0 N.m) 2-phase NEMA 24 (60 mm ) stepper motor with 1,000-line incremental encoder (A , A-, B , B- signals).
When driven by Leadshine low voltage easy servo drives (closed loop stepper drives), the position loop between ES-M22430 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
The Leadshine ES-M22430 can also driven by regular open loop 2-phase stepper drives and feed back encoder signals to motion controllers, or external devices.
The ES-M22430 easy servo motor is built with high quality material and can move smoothly with very low noise and heating.
Specifications
| Model: | ES-M22430 | | Frame Size: | NEMA 24 | | Phase: | 2 | | Step Angle: | 1.8° | | Holding Torque: | 3.0 Nm (425 Oz-in) | | Number of Leads: | 4 | | Encoder Resolution: | 1,000 Line | | Shaft Size: | 0.315 inch (8.000 mm) | | Phase Current: | 3.0 A | | Inductance: | 1.71 mH | | Resistance: | 0.39 Ohm | | Rotor Inertia: | 0.00733 oz-in-sec2 | | Length: | 4.02 inch (102 mm) | | Weight: | 3.52 lbs (1.6 kg) |

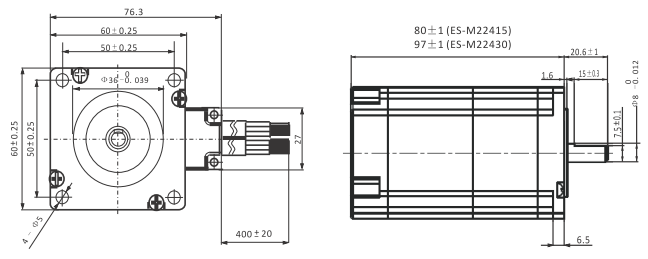

Mechanical Specification
Unit: mm
1 inch = 25.4 mm

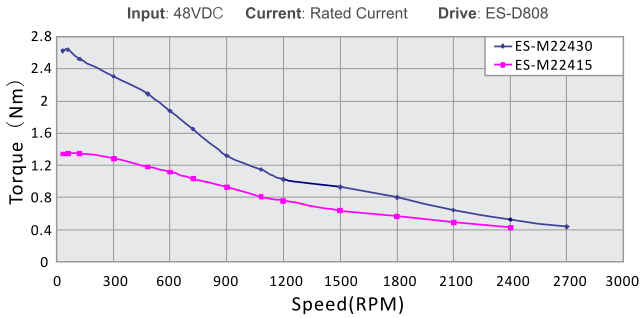

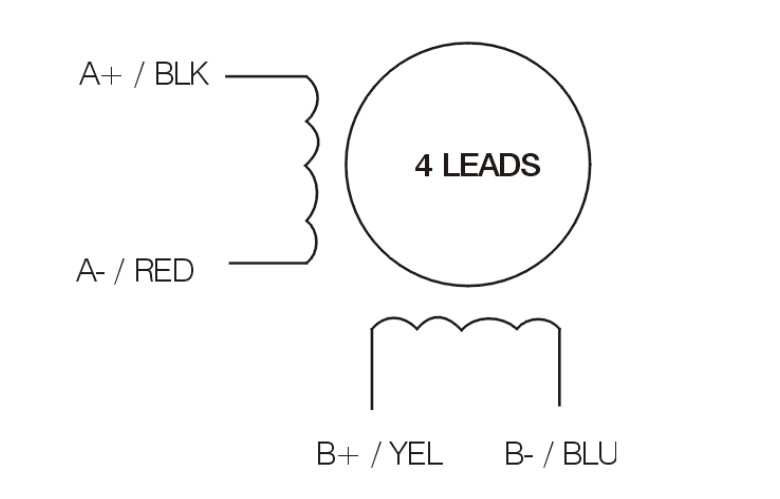

Speed Torque Curve
1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in
|
|
Accessories

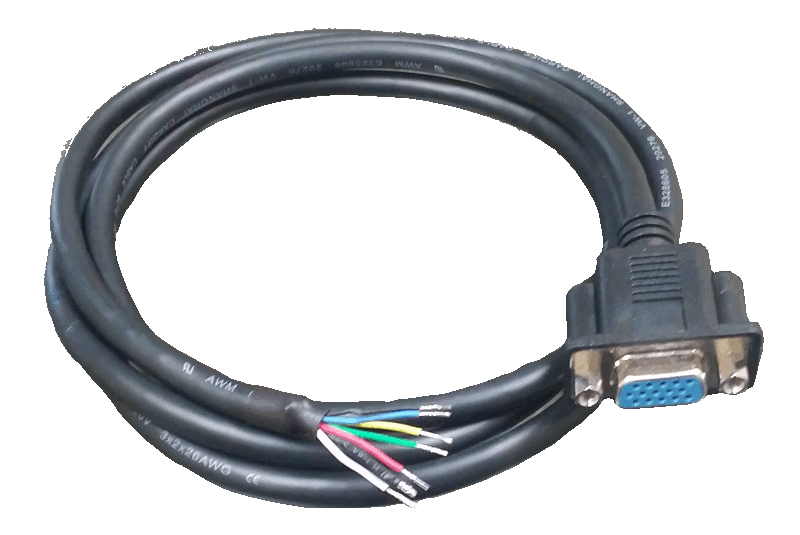

Listed below are accessories for Leadshine NEMA 24 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 425 Oz-In (3.0Nm) Torque; 1,000-Line Encoder; 0.325'' Shaft.
|
Matching Easy Servo Drive(s)closed loop stepper drive
AMT offers the following companion easy servo drive(s) for ES-M22430, to provide you fully loop closed loop controls.
To see all Leadshine easy drives that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including ES-M22430
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|

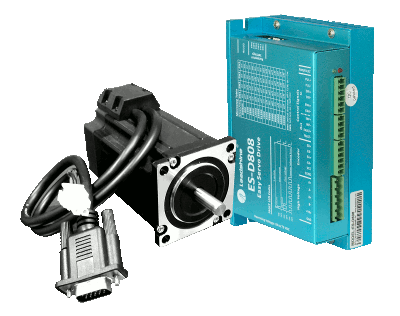

ES-P22430: NEMA 24 (60mm Frame) Easy Servo Set. One NEMA 24 Easy Servo Motor of 425 Oz-In (3 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$329.00 / $319.00
|
|
