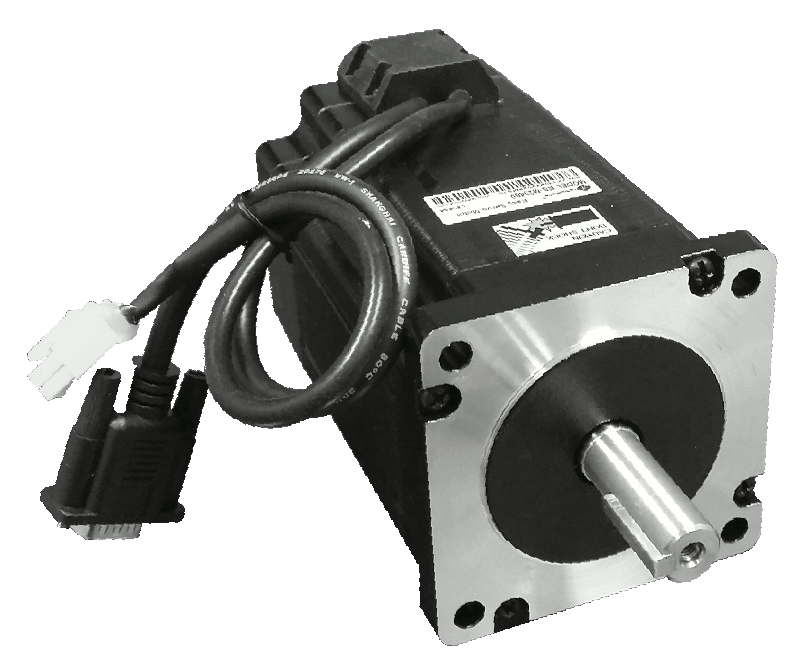

Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 566 Oz-In (4.0Nm) Torque; 1,000-Line Encoder
ES-M23440
: Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 566 Oz-In (4.0Nm) Torque; 1,000-Line Encoder
|
|
|
Features
- 2-Phase NEMA 34 frame size
- 566 oz-in (4.0 Nm) holding torque
- Speed range: 0-3,000 RPM
- Integrated 1,000-line incremental encoder (A, B channels)
- 0.551 inch (14 mm) or optional 0.5 inch (12.7 mm) shaft size
- Quiet movement and low motor heating
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
|
|
Regular Price: |
$199.00
|
|
|
Online Prices:
|
$179.00
|
Qty 1 - 4
|
|
|
$170.00
|
Qty 5 - 9
|
|
You save
|
10.05%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview
The Leadshine ES-M23440 easy servo motor is a 2-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A , B channels).
When driven by Leadshine low voltage easy servo drives (closed loop stepper drives), the position loop between ES-M23440 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
The Leadshine ES-M23440 can also driven by regular open loop 2-phase stepper drives and feed back encoder signals to motion controllers, or external devices.
The ES-M23440 easy servo motor is built with high quality material and can move smoothly with very low noise and heating.
Specifications
| Model: | ES-M23440
ES-M23440-1270 | | Frame Size: | NEMA 34 | | Phase: | 2 | | Step Angle: | 1.8° | | Holding Torque: | 4.0 Nm (566 Oz-in) | | Number of Leads: | 4 | | Encoder Resolution: | 1,000 Line | | Shaft Size: | 0.551 inch (14.000 mm)
0.500 inch (12.700 mm) | | Phase Current: | 5.5 A | | Inductance: | 4.0 mH | | Resistance: | 0.46 Ohm | | Rotor Inertia: | 0.0212 oz-in-sec2 | | Length: | 3.82 inch (97 mm) | | Weight: | 5.75 lbs (2.61 kg) |

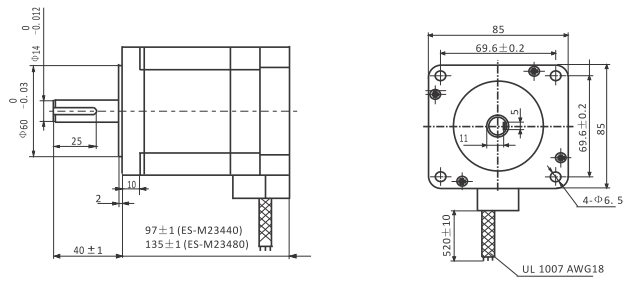

Mechanical Specification
Unit: mm
1 inch = 25.4 mm

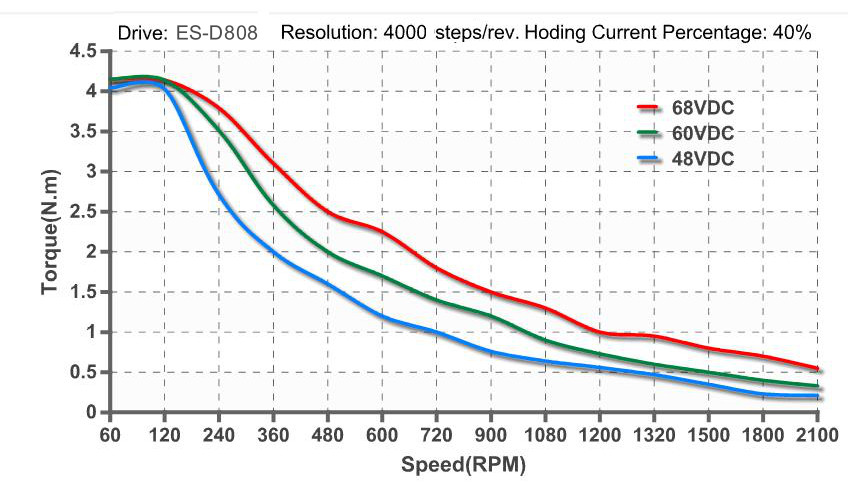

Speed Torque Curve
1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in
|
|
Accessories
Listed below are accessories for Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 566 Oz-In (4.0Nm) Torque; 1,000-Line Encoder.
|
Matching Easy Servo Drive(s)closed loop stepper drive
AMT offers the following companion easy servo drive(s) for ES-M23440, to provide you fully loop closed loop controls.
To see all Leadshine easy drives that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including ES-M23440
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
ES-P23440: NEMA 34 Easy Servo. One Easy Servo Motor & One easy Servo Drive; 566 Oz-In (4 N.m) Holding Torque; Step & Direction Control; 24-80 VDC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$329.00 / $319.00
|
|
