Leadshine NEMA 23 Easy Servo Motor (Closed Loop Stepper); 3 Phase; 128 Oz-In (0.9Nm) Torque
ES-M32309
: Leadshine NEMA 23 Easy Servo Motor (Closed Loop Stepper); 3 Phase; 128 Oz-In (0.9Nm) Torque
|
|
|
Features
- 3-Phase NEMA 23 frame size
- 128 oz-in (0.9 Nm) holding torque
- Speed range: 0-3,000 RPM
- Integrated 1,000-line incremental encoder (A, B channels)
- 0.315 inch (8 mm) or optional 0.25 inch (6.35 mm) shaft size
- Quiet movement and low motor heating
* Note: when driven by an AMT offered Leadshine easy servo drive or open-loop 3-phase stepper drive, this 3-phase motor will run like a 2-phase stepper motor with 1.8deg; stepping angle. There is no need to reconfigure your control system configuration. When moving in full step mode, this 3-phase stepper motor will move 200 steps per resolution, same as a 2-phase stepper motor.
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
|
|
Regular Price: |
$129.00
|
|
|
Online Prices:
|
$119.00
|
Qty 1 - 4
|
|
|
$112.00
|
Qty 5 - 9
|
|
You save
|
7.75%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|

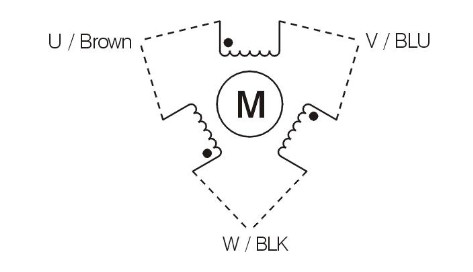

OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview

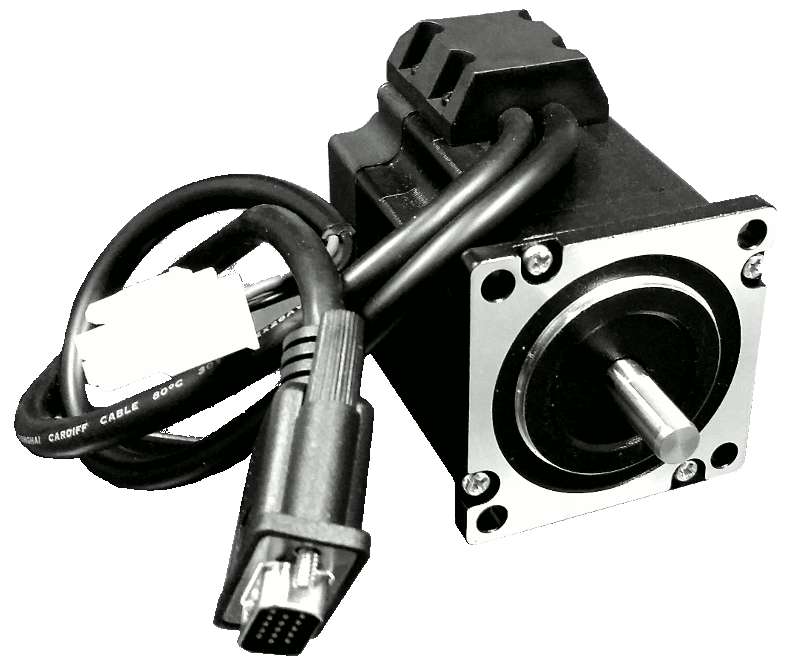

The Leadshine ES-M32309 easy servo motor is a 128 oz-in (0.9 N.m) 3-phase NEMA 23 stepper motor with 1,000-line incremental encoder (A , B channels).
When driven by Leadshine ES-D508 easy servo drive (closed loop stepper drive), the position loop between ES-M32309 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
Leadshine ES-M32309 can also driven by regular open loop 3-phase stepper drives and feed back encoder signals to motion controllers, or external devices.
The ES-M32309 easy servo motor is built with high quality material and can move smoothly with very low noise and heating.
Specifications
| Model: | ES-M32309
ES-M32309-0635 | | Frame Size: | NEMA 23 | | Phase: | 3 | | Step Angle: | 1.2° | | Holding Torque: | 0.9 Nm (128 Oz-in) | | Number of Leads: | 3 | | Encoder Resolution: | 1,000 Line | | Shaft Size: | 0.315 inch (8.000 mm)
0.250 inch (6.350 mm) | | Phase Current: | 5.8 A | | Inductance: | 0.72 mH | | Resistance: | 0.35 Ohm | | Rotor Inertia: | 0.00395 oz-in-sec2 | | Length: | 2.83 inch (72 mm) | | Weight: | 1.65 lbs (0.75 kg) |

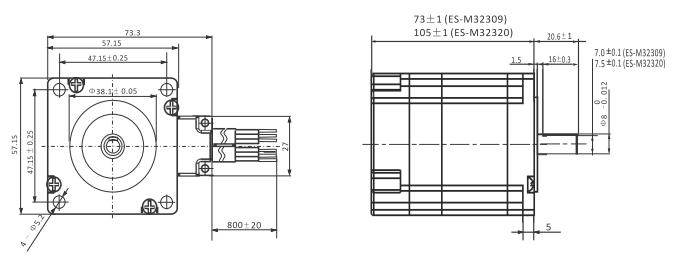

Mechanical Specification
Unit: mm
1 inch = 25.4 mm

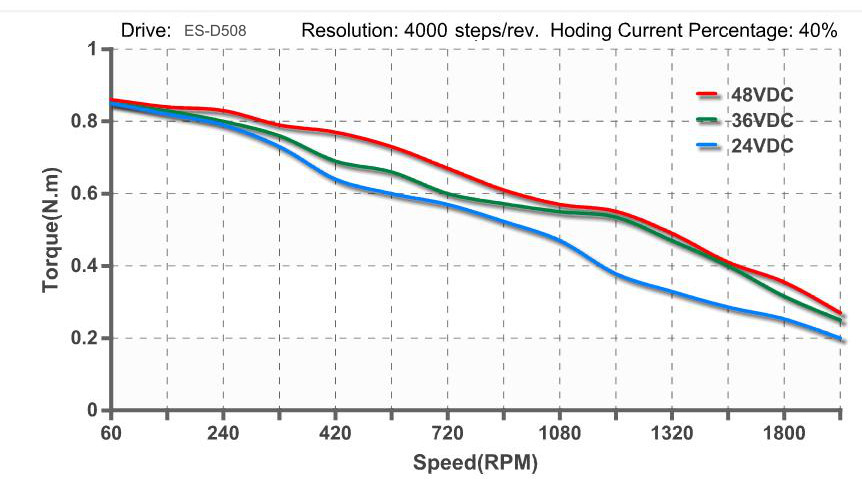

Speed Torque Curve
1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in
|
|
Accessories
Listed below are accessories for Leadshine NEMA 23 Easy Servo Motor (Closed Loop Stepper); 3 Phase; 128 Oz-In (0.9Nm) Torque.
|
Matching Easy Servo Drive(s)closed loop stepper drive
AMT offers the following companion easy servo drive(s) for ES-M32309, to provide you fully loop closed loop controls.
To see all Leadshine easy drives that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including ES-M32309
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
ES-P32309: NEMA 23 Easy Servo Set. One Easy Servo Motor & One Easy Servo Drive; 128 Oz-In (0.9 N.m) Holding Torque; Step & Direction Control; 20-50 VDC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$229.00 / $219.00
|
|
