Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 3 Phase; 1,133 Oz-In (8.0Nm) Torque; 1,000-Line Encoder; 0.551'' (14mm) Shaft; 220/230VAC Voltage
ES-MH33480
: Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 3 Phase; 1,133 Oz-In (8.0Nm) Torque; 1,000-Line Encoder; 0.551'' (14mm) Shaft; 220/230VAC Voltage
|
|
|
Features
- Designed for driving by 220/230 easy servo drives or stepper drives
- 2-Phase NEMA 34 frame size
- 1,133 oz-in (8.0 Nm) holding torque
- Speed range: 0-3,000 RPM
- Integrated 1,000-line incremental encoder with A, B channels
- Strong 0.551 inch (14 mm) shaft
- High precision
- Quiet movement and low motor heating & noise
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$279.00
|
|
|
Online Prices:
|
$259.00
|
Qty 1 - 4
|
|
|
$246.00
|
Qty 5 - 9
|
|
You save
|
7.17%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|

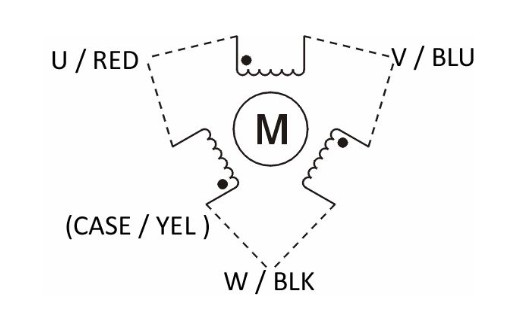

OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview

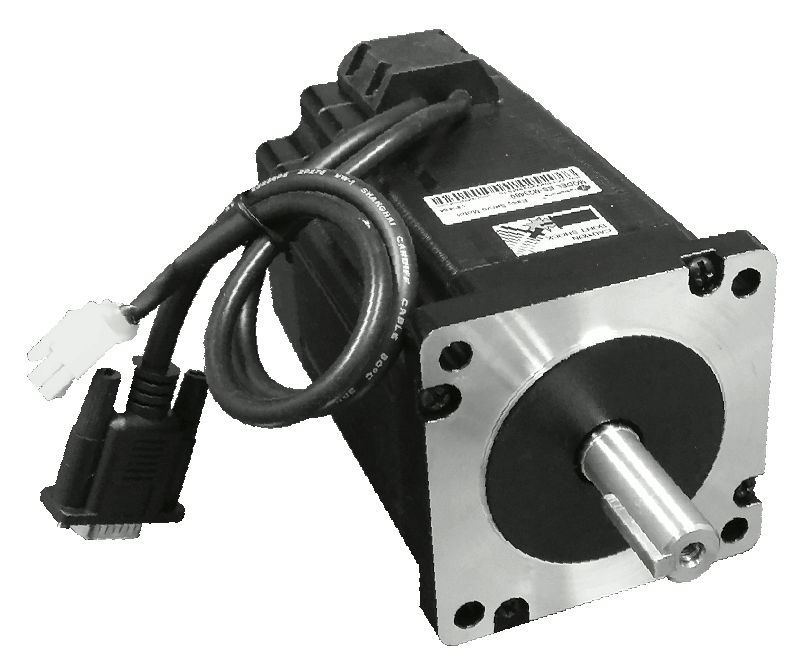

The Leadshine ES-MH33480 easy servo motor is a 1,133 oz-in (8.0 N.m) 3-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A , B channels). It is specially designed to be for powered by 220/230 VAC input high voltage easy servo drives.
When driven by Leadshine high voltage easy servo drives (closed loop stepper drives), the position loop between ES-MH33480 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
With the advanced features of no loss of steps, high torque, no power supply, no overshooting, and plug-and-play setup, the combination of of ES-MH33480 and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, CNC laser, CNC lathe, plasma, textile equipment...
Specifications
| Model: | ES-MH33480 | | Frame Size: | NEMA 34 | | Phase: | 3 | | Step Angle: | 1.2° | | Holding Torque: | 8.0 Nm (1133 Oz-in) | | Number of Leads: | 3 | | Encoder Resolution: | 1,000 Line | | Shaft Size: | 0.551 inch (14.000 mm) | | Targeted Input Voltage: | 220/230 VAC | | Phase Current: | 3.0 A | | Inductance: | 18.33 mH | | Resistance: | 2.34 Ohm | | Rotor Inertia: | 0.0564 oz-in-sec2 | | Length: | 6.81 inch (173 mm) | | Weight: | 12.33 lbs (5.6 kg) |

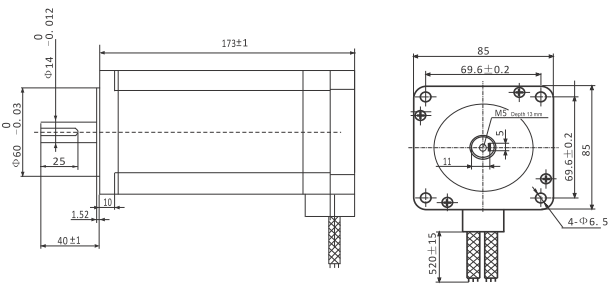

Mechanical Specification
Unit: mm
1 inch = 25.4 mm

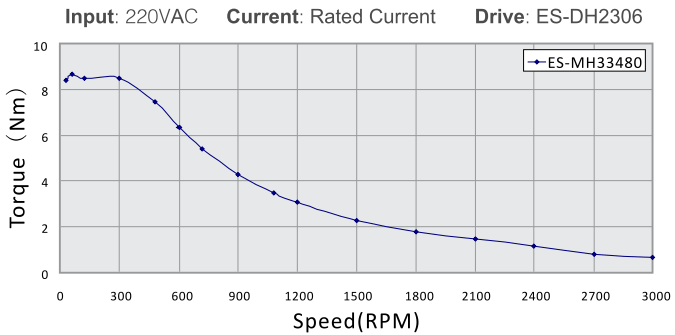

Speed Torque Curve
1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in
|
|
Accessories
Listed below are accessories for Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 3 Phase; 1,133 Oz-In (8.0Nm) Torque; 1,000-Line Encoder; 0.551'' (14mm) Shaft; 220/230VAC Voltage.
|
Matching Easy Servo Drive(s)closed loop stepper drive
AMT offers the following companion easy servo drive(s) for ES-MH33480, to provide you fully loop closed loop controls.
To see all Leadshine easy drives that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including ES-MH33480
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
ES-PH33480: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,133 Oz-In (8 N.m) Holding Torque; Step & Direction Control; 220/230 VAC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$499.00 / $479.00
|
|
|
Similar Products
|
|
