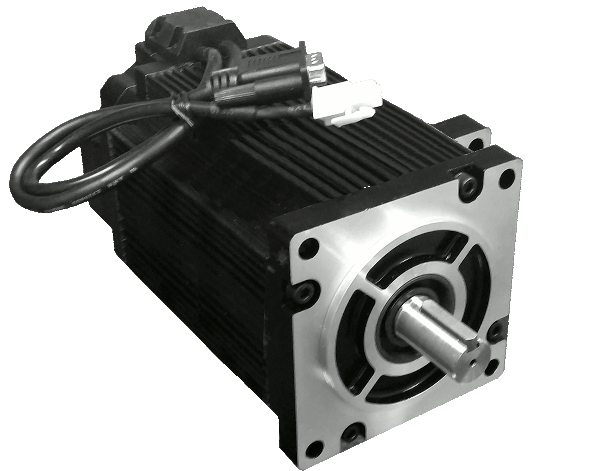

Leadshine 2,832 oz-in (20Nm) 2-Phase NEMA 34 Easy Servo Motor (220/230 AC Input) With 0.748'' (14mm) Shaft; 1,000-Line Encoder
ES-MH342200
: Leadshine 2,832 oz-in (20Nm) 2-Phase NEMA 34 Easy Servo Motor (220/230 AC Input) With 0.748'' (14mm) Shaft; 1,000-Line Encoder
|
|
|
Features
- Designed for driving by 220/230 easy servo drives or stepper drives
- 3-Phase NEMA 42 frame size
- 2,832 oz-in (20 Nm) holding torque
- Speed range: 0-3,000 RPM
- Integrated 1,000-line incremental encoder with A, B channels
- Strong 0.748 inch (19 mm) shaft
- High precision
- Quiet movement and low motor heating & noise
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$379.00
|
|
|
Online Prices:
|
$339.00
|
Qty 1 - 4
|
|
|
$322.00
|
Qty 5 - 9
|
|
You save
|
10.55%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview
The Leadshine ES-MH342200 easy servo motor is a 2,832 oz-in (20 N.m) 3-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A , B channels). It is specially designed to be for powered by 220/230 VAC input high voltage asy servo drives (closed loop stepper drives).
When driven by Leadshine high voltage asy servo drives (closed loop stepper drives), the position loop between ES-MH342200 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
With the advanced features of no loss of steps, high torque, no power supply, no overshooting, and plug-and-play setup, the combination of of ES-MH342200 and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, plasma, textile equipment...
Specifications
| Model: | ES-MH342200 | | Frame Size: | NEMA 42 | | Phase: | 3 | | Step Angle: | 1.2° | | Holding Torque: | 20 Nm (2832 Oz-in) | | Number of Leads: | 3 | | Encoder Resolution: | 1,000 Line | | Shaft Size: | 0.748 inch (19.000 mm) | | Targeted Input Voltage: | 220/230 VAC | | Phase Current: | 5.2 A | | Inductance: | 18 mH | | Resistance: | 1.88 Ohm | | Rotor Inertia: | 0.2397 oz-in-sec2 | | Length: | 9.65 inch (245 mm) | | Weight: | 23.13 lbs (12.8 kg) |

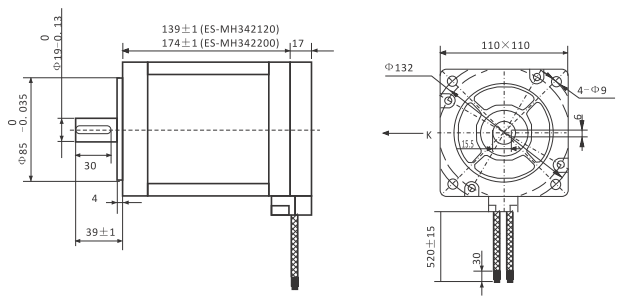

Mechanical Specification
Unit: mm
1 inch = 25.4 mm

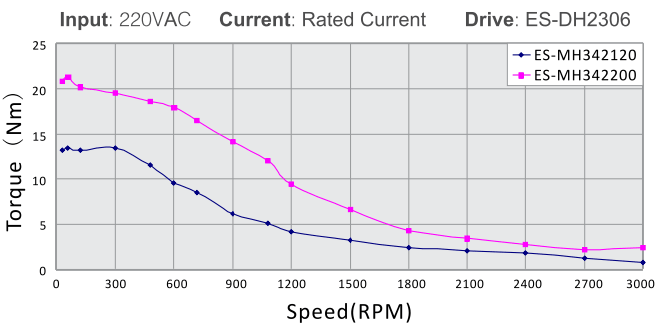

Speed Torque Curve
1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in
|
|
Accessories
Listed below are accessories for Leadshine 2,832 oz-in (20Nm) 2-Phase NEMA 34 Easy Servo Motor (220/230 AC Input) With 0.748'' (14mm) Shaft; 1,000-Line Encoder.
|
Matching Easy Servo Drive(s)closed loop stepper drive
AMT offers the following companion easy servo drive(s) for ES-MH342200, to provide you fully loop closed loop controls.
To see all Leadshine easy drives that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including ES-MH342200
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
ES-PH342200: NEMA 42 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 2,832 Oz-In (20 N.m) Holding Torque; Step & Direction Control; 220/230 VAC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$599.00 / $579.00
|
|
