AMT NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 1,232 Oz-In (8.7Nm) Torque; 1,000-Line Encoder; 0.5'' (12.7mm) Shaft; 110/120VAC Voltage
HSM23487H
: AMT NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 1,232 Oz-In (8.7Nm) Torque; 1,000-Line Encoder; 0.5'' (12.7mm) Shaft; 110/120VAC Voltage
|
|
|
Features
Designed for driving by 110/120 easy servo drives or stepper drives
2-Phase NEMA 34 frame size
1,232 oz-in (8.7 Nm) holding torque
Speed range: 0-3,000 RPM
Integrated 1,000-line incremental encoder with A, B channels
Strong 0.5 inch (12.7 mm) shaft
High precision
Quiet movement and low motor heating & noise
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$239.00
|
|
|
Online Prices:
|
$209.00
|
Qty 1 - 4
|
|
|
$198.00
|
Qty 5 - 9
|
|
You save
|
12.55%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
Out of stock
|
|
|
|
* May need power & encoder cables also
|
|
|

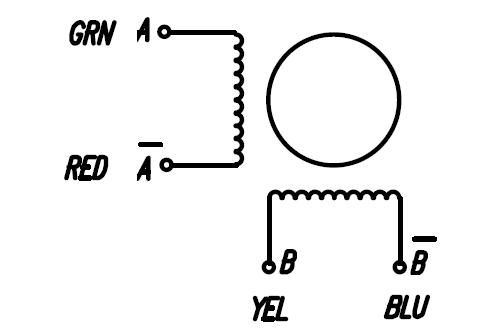

OverviewSpecificationsMechanicalWiring DiagramDownload
Overview

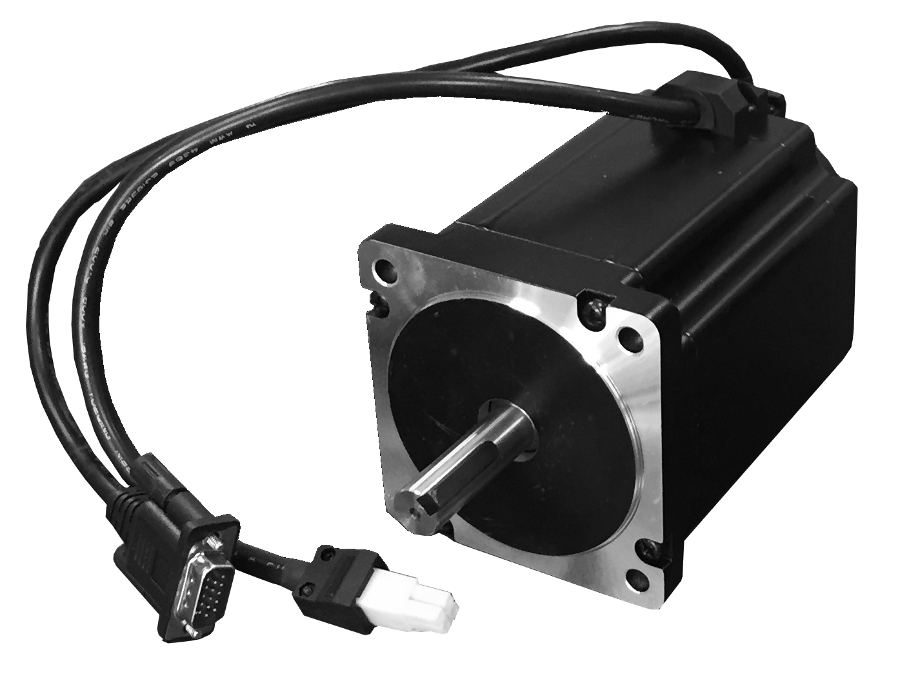

The AMT HSM23485H easy servo motor is a 1,232 oz-in (8.7 N.m) 2-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A , B channels). It is specially designed to be for powered by 110/120 VAC input high voltage easy servo drives .
When driven by Leadshine high voltage asy servo drives (closed loop stepper drives), the position loop between HSM23485H and the drive is closed. You will never loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
With the advanced features of no loss of steps, high torque, no power supply, no overshooting, and plug-and-play setup, the combination of of HSM23485H and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, plasma, textile equipment...
Specifications
| Model: | HSM23487H | | Frame Size: | NEMA 34 | | Phase: | 2 | | Step Angle: | 1.8° | | Holding Torque: | 8.7 Nm (1232 Oz-in) | | Number of Leads: | 4 | | Encoder Resolution: | 1,000 Line | | Shaft Size: | 0.500 inch (12.700 mm) | | Targeted Input Voltage: | 110/120 VAC | | Phase Current: | 2.8 A | | Inductance: | 20 mH | | Resistance: | 2.0 Ohm | | Length: | 5.20 inch (132 mm) | | Weight: | 8.45 lbs (3.7 kg) |

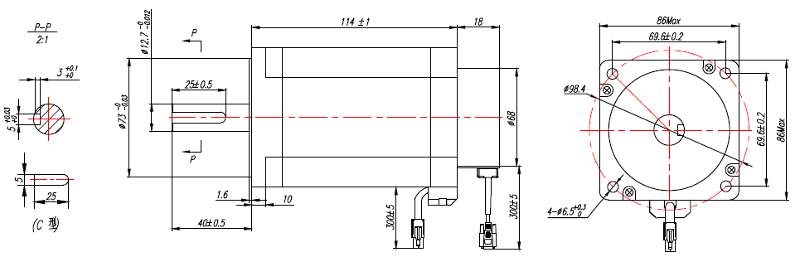

Mechanical Specification
Unit: mm
1 inch = 25.4 mm
|
|
Accessories
Listed below are accessories for AMT NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 1,232 Oz-In (8.7Nm) Torque; 1,000-Line Encoder; 0.5'' (12.7mm) Shaft; 110/120VAC Voltage.
|
Matching Easy Servo Drive(s)closed loop stepper drive
AMT offers the following companion easy servo drive(s) for HSM23487H, to provide you fully loop closed loop controls.
To see all Leadshine easy drives that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including HSM23487H
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
ES-PH23487: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,232 Oz-In (8.7 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder
|
1 Pc. / 5 Pc. Price:
$409.00 / $389.00
|
|
