Leadshine iES-2320 NEMA 23 283 oz-in (2.0 N.m) Integrated Easy Servo Motor (Motor + Encoder + Drive); Fully Closed Position Loop; 1,000-line Encoder; Max 20-50VDC/6A

iES-2320 : Leadshine iES-2320 NEMA 23 283 oz-in (2.0 N.m) Integrated Easy Servo Motor (Motor + Encoder + Drive); Fully Closed Position Loop; 1,000-line Encoder; Max 20-50VDC/6A
by Leadshine Technology, Inc. (write an review)
iES-2320
Features
  • Compact integrated design with stepper motor + encoder + drive
  • Stepper motor based servo control
  • Fully closed position loop for servo control without loss of steps
  • Load based current for extra lower motor heating
  • Step & direction control
  • 283 oz-in (2.0 Nm) holding torque
  • 20-50 VDC input voltage and up to 6A current
  • 1,000-line incremental encoder
  • Default 200K input frequency; 500K software configurable
  • Minimized wiring for easy installation
  • No torque reservation for 100% torque implementation
  • Quick acceleration
  • No hunting & no overshooting
  • No tuning for almost all applications
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $279.00
  Online Prices: $259.00 Qty  1 - 4
  $249.00 Qty  5 - 9
  $239.00 Qty 10 - 24
  $229.00 Qty 25 - 49
  You save 7.17 %
  Contact us for qty 50 & up
  Stock: In stock
Qty:

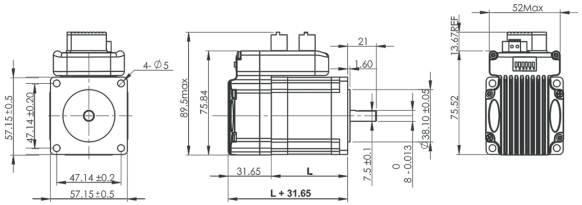

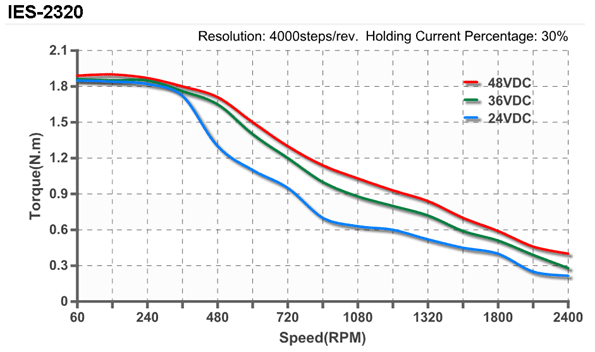

OverviewSpecificationMechanicalTorque CurveDownload
Overview
The Leadshine iES-2320 integrated easy servo motor is an Nema 23 easy servo motor (stepper motor with encoder) integrated with an easy servo drive. It is highly integrated with a 283 oz-in (2.00 N.m) NEMA 23 stepper motor, a 1000-line encoder, and an easy servo drive 20 - 50VDC / 6.0A. At very compact size, it reduces cabling time & cost, saves mounting space, cuts labor costs, and simplifies setup & installation. By taking step & direction control commands, iES-2320 is ideal for adopted in many OEM applications.

The iES-2320 integrated easy servo motor combines the technologies of both open loop stepper systems and brushless servo systems. It provides an alternative solution of stepper-based servo control.

While keeping the high torque, low cost and easy-to-implement features of open loop stepper systems, iES-2320 outperforms comparable open loop stepper systems in closed position loop for No Loss of Steps, much lower motor heating & noise, much quicker system response time, much faster acceleration, no torque reservation, better high speed performance, etc.

Similar to brushless servo systems, iES-2320 is able to provide real-time servo control and correct any position errors in motor movement. But for many applications, cost for iES-2320 easy servo motor is much lower. It also outperforms brushless servo systems in much higher low-middle speed torque, high stiffness at standstill, no hunting, no overshooting, almost zero settling time, and almost no tuning.

The iES-2320 easy servo motor is ideal for updating all open loop stepper systems, or replaces brushless servo systems in many OEM applications. It has been widely implemented in industries such as CNC machinery, medical, textile, electronics, semiconductor…
Accessories

Listed below are accessories for Leadshine iES-2320 NEMA 23 283 oz-in (2.0 N.m) Integrated Easy Servo Motor (Motor + Encoder + Drive); Fully Closed Position Loop; 1,000-line Encoder; Max 20-50VDC/6A.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0905517-E31 1.4.4-0905517-E31: RS232 Cable for Tuning Leadshine Integrated Stepper/Servo Motors $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for iES-2320. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS487-L SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input $89.00 / $84.00 Order Quantity:
PS405-5 PS405-5: Leadshine PS405-5 Linear Power Supply;36 VDC/5A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS405-12 PS405-12: Leadshine PS405-12 Linear Power Supply;36 VDC/5A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS408-5 PS408-5: Leadshine PS408-5 Linear Power Supply;36 VDC/8A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
PS408-12 PS408-12: Leadshine PS408-12 Linear Power Supply;36 VDC/8A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
