Leadshine High Performance 2-Phase NEMA 23 Hybrid Stepper Motor with 298 OZ-IN Torque (2.1 N.m) Single 0.25'' Shaft

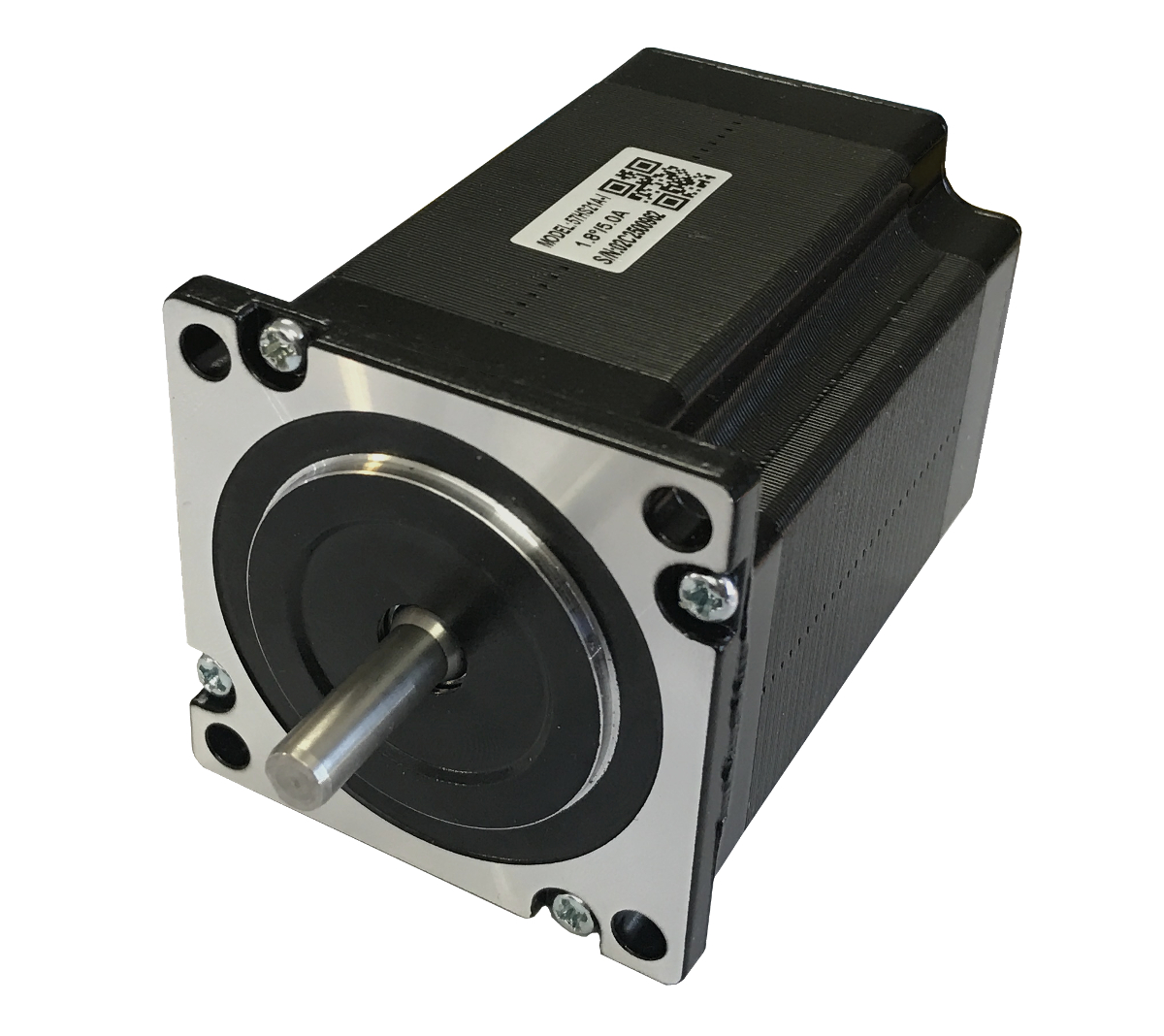

57HS21A-I : Leadshine High Performance 2-Phase NEMA 23 Hybrid Stepper Motor with 298 OZ-IN Torque (2.1 N.m) Single 0.25'' Shaft
by Leadshine Technology, Inc. (write an review)
  • 2-phase 1.8& step angle
  • NEMA 23 frame size
  • 298 oz-in (2.1 Nm) holding torque
  • Single 0.25 inch (6.35mm) shaft
  • Industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $39.00
  Online Prices: $49.00 Qty  1 - 4
  $45.00 Qty  5 - 9
  $42.00 Qty 10 - 24
  You save -25.64 %
  Contact us for qty 25 & up
  Stock: In stock

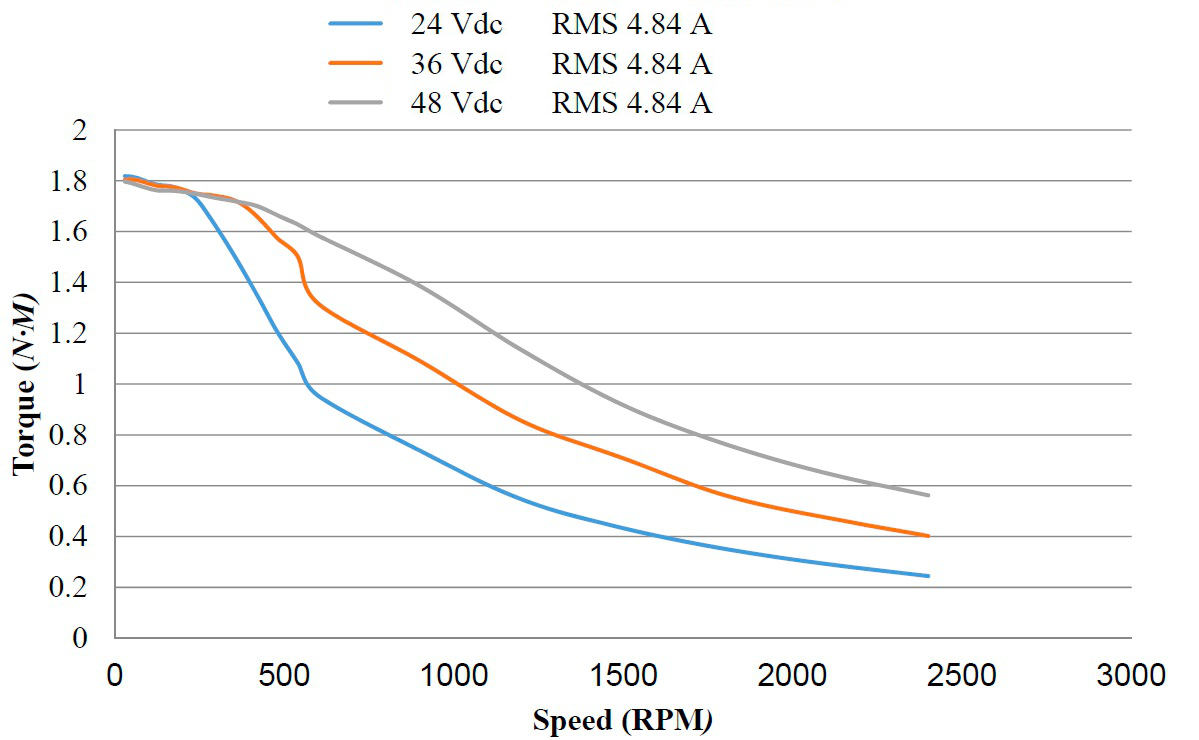

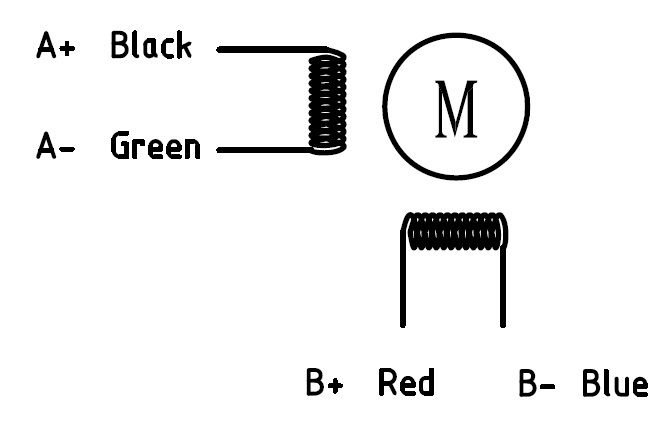

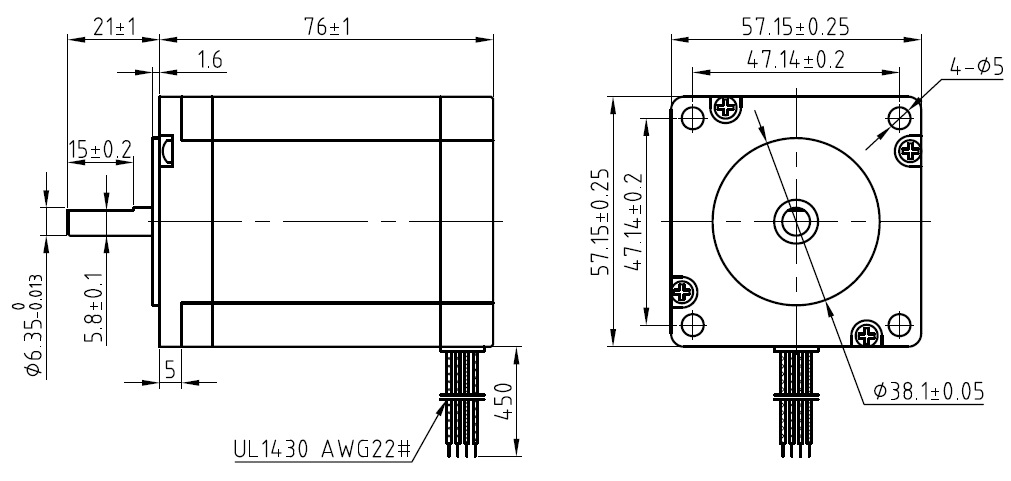

OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
The 57HS21A-I is a 2-phase NEMA 23 hybrid stepper motor from Leadshine with holding torque of 298 oz-in (2.1 Nm). Built with high quality materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proving performance excellence in many industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 57HS21A-I to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase

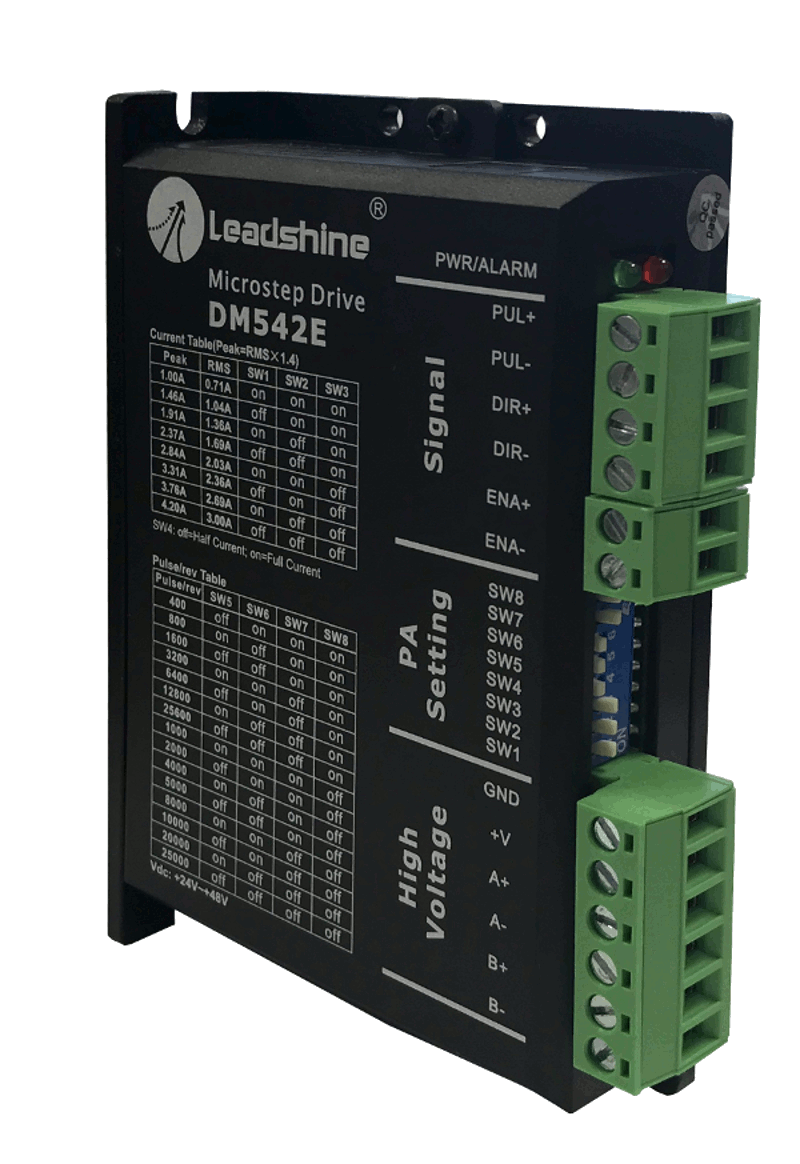

DM542E DM542E: Leadshine DM542E 2-phase Stepper Drive with Max 50 VDC / 4.2A $49.00 / $48.00 Order Quantity:
DM556 DM556: Leadshine DM556 2-phase DSP Digital Stepper Drive with Max 50 VDC / 5.6A $109.00 / $105.00 Order Quantity:
DM870 DM870: Leadshine DM870 2-phase DSP Digital Stepper Drive with Max 80 VDC / 7.0A $139.00 / $135.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
