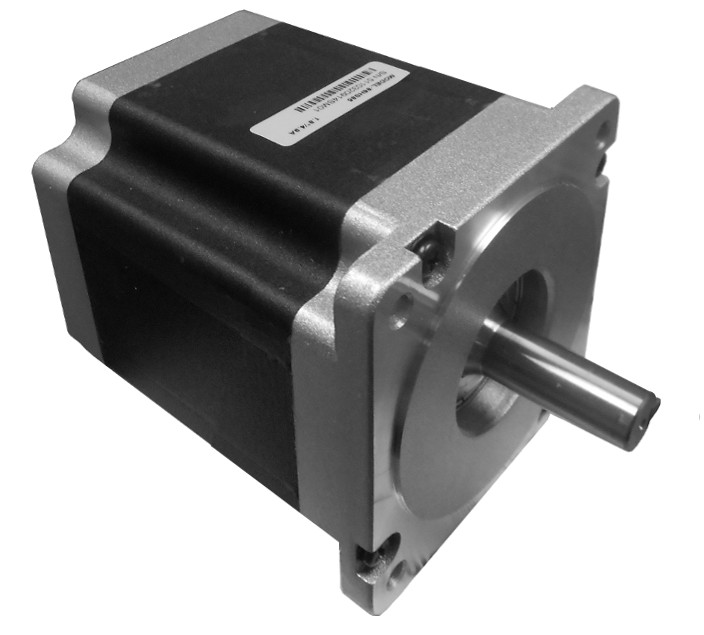

86HS65 : Leadshine 86HS65 High Performance 2-Phase NEMA 34 Hybrid Stepper Motor with 991 Oz-In Torque (7 N.m)

by Leadshine Technology, Inc.

Datasheet

Features

2-phase 1.8° step angle
NEMA 34 frame size
991.0 oz-in (7.0 Nm) holding torque
Single shaft of 0.500 inch
industrial quality
High accuracy
Smooth movement
Low motor heating

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$139.00~~

Online Prices:

$139.00

Qty 1 - 4

$129.00

Qty 5 - 9

Stock:

Out of stock

Qty:

OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload

Overview

The 86HS65 is a 2-phase NEMA 34 hybrid stepper motor from Leadshine with holding torque of 991.00 oz-in (7.0 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.

Specifications

Model:	86HS65
Frame Size:	NEMA 34
Phase:	2
Step Angle:	1.8°
Holding Torque:	991 Oz-in (7.0 Nm)
Number of Leads:	8
Shaft Type:	Single
Shaft Size:	0.500 inch (12.700 mm)
Parallel Phase Current:	6.1 A
Series Phase Current:	3.05 A
Parallel Inductance:	3.3 mH
Serious Inductance:	13.2 mH
Parallel Resistance:	0.35 Ohm
Series Resistance:	1.4 Ohm
Rotor Inertia:	0.01988 oz-in-sec²
Length:	3.78 inch (98 mm)
Weight:	5.1 lbs (2.3 kg)

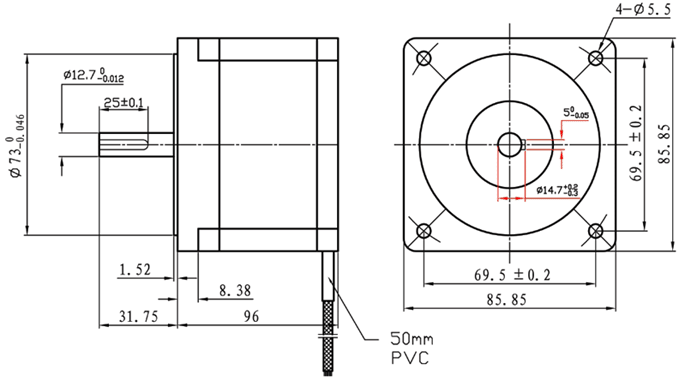

Mechanical Specification

Unit: mm
1 inch = 25.4 mm

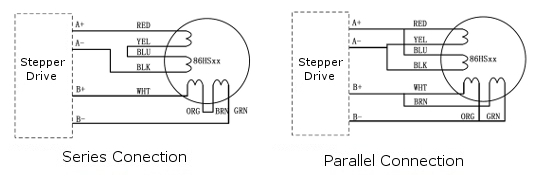

Wiring Diagram

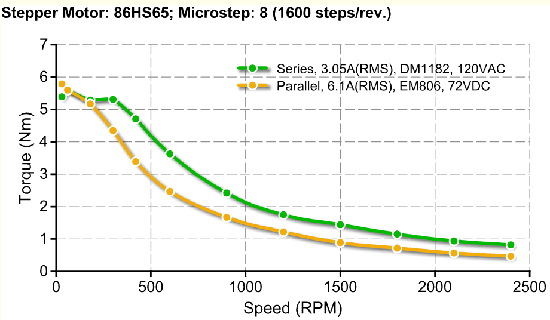

Speed Torque Curve

1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in

Download(s) for

Datasheet:

86HSSeries.pdf

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 86HS65 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

Model / Description	Spec.	1 Pc. / 5 Pc. Price	Purchase
DM1182: Leadshine DM1182 2-phase DSP Stepper Drive of Direct 110/120 VAC Input / Max 8.2 A Output Current		$219.00 / $212.00	Order Quantity:
DM2282: Leadshine DM2282 2-phase DSP Stepper Drive of Direct 120/220 VAC Input / Max 8.2 A Output Current		$239.00 / $229.00	Order Quantity:
EM705: Leadshine EM705 Advanced 2-Phase DSP Stepper Drive Max 70VDC/2.2A with Stall Detection		$129.00 / $122.00	Order Quantity:
EM806: Leadshine EM806 Advanced 2-Phase DSP Stepper Drive Max 80VDC/8.2A with Stall Detection		$139.00 / $132.00	Order Quantity:
DM870: Leadshine DM870 2-phase DSP Digital Stepper Drive with Max 80 VDC / 7.0A		$139.00 / $135.00	Order Quantity:
DM805-AI: Leadshine DM805-AI Stepper Drive with Built-in Speed Controller (oscillator) 80 VDC/7.0 A		$139.00 / $132.00	Order Quantity:
