Leadshine MX3660 3-Axis Stepper Drive. Powering Up To 3 NEMA 17/23/24/34 Stepper Motor; Individual Setting For Each Axis Via DIP Switches; 20-60 VDC Input; 1.45-6.0A Output Current; Built-In Breakout Board

MX3660 : Leadshine MX3660 3-Axis Stepper Drive. Powering Up To 3 NEMA 17/23/24/34 Stepper Motor; Individual Setting For Each Axis Via DIP Switches; 20-60 VDC Input; 1.45-6.0A Output Current; Built-In Breakout Board
by Leadshine Technology, Inc. (write an review)
MX3660
Features
  • Adopting advanced stepper control algorithm based on the latest DSP control technology
  • Complete controls for 3 stepper motors of NEMA 17, 23, 24, and 34
  • Step & direction control
  • 20-60 VDC supply voltage
  • Output current from 1.45 to 6.0A per axis
  • Built-in breakout board and I/O's
  • Convenient individual setting for each axis via DIP switches
  • 8 micro step settings: 1, 1/2, 1/4, 1/8, 1/10, 1/16, 1/32, 1/64
  • 8 output current settings: 1.45, 2.08, 2.72, 3.37, 4.05, 4.72, 5.35, 6.0 A
  • Built-in breakout board 5 digital inputs, 4 general outputs, & one 0-10 VDC analog output
  • DIP switches for micro step and output current configurations
  • Anti resonance for low and middle speed
  • Excellent high speed performance
  • Extra low motor heating & noise; smooth movement
  • Easy setup with many CNC control systems such as Mach3 and EMC
  • Easy to install and simple to implement
  • Automatic idle current reduction to 50%
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $299.00
  Online Prices: $289.00 Qty  1 - 4
  $275.00 Qty  5 - 9
  You save 3.34 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

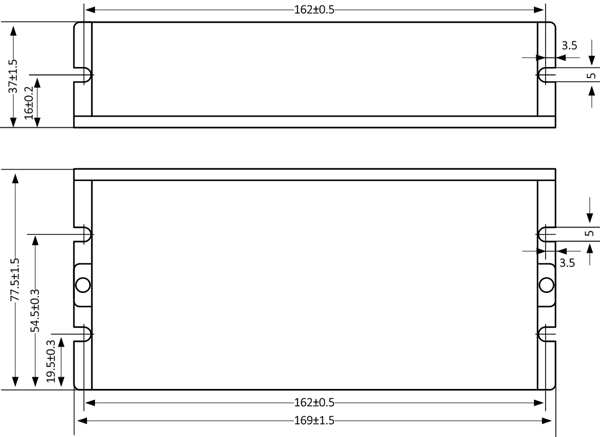

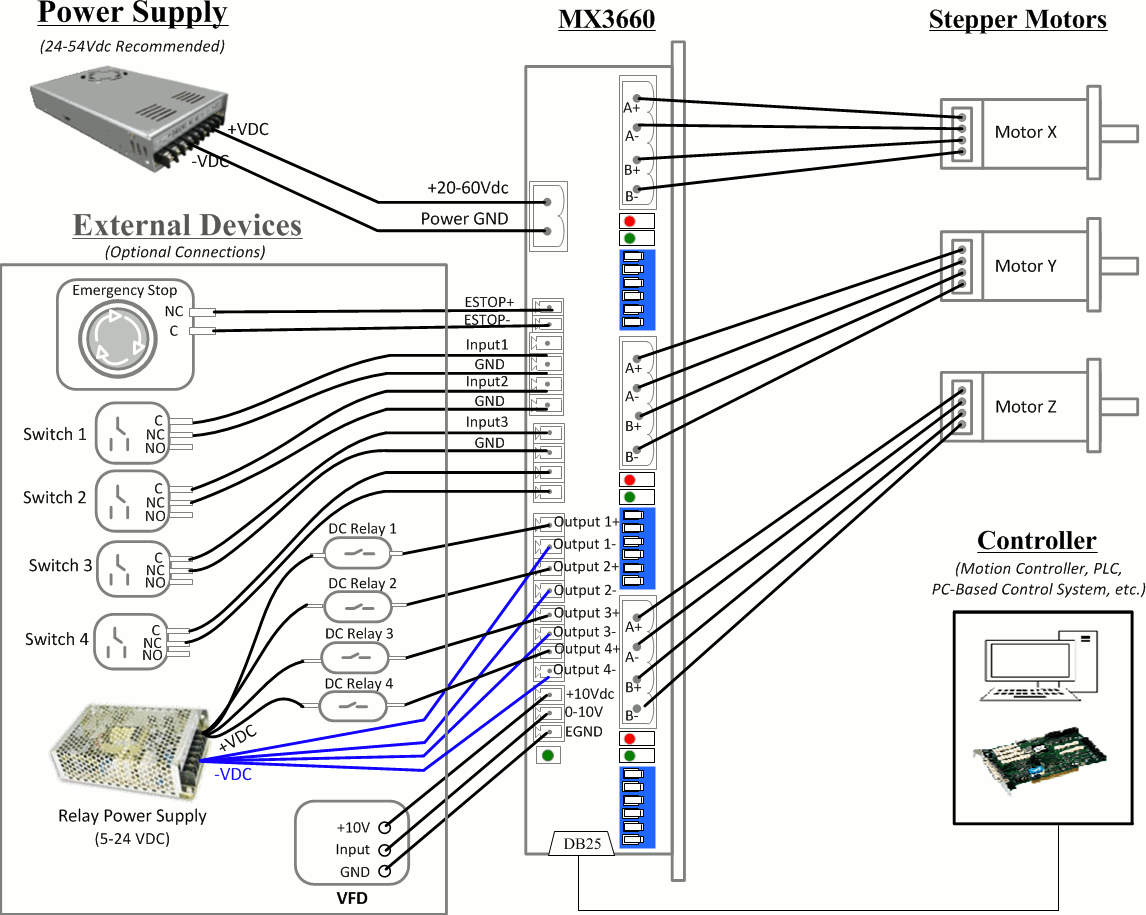

OverviewSpecificationMechanicalConnectionDownload
Overview

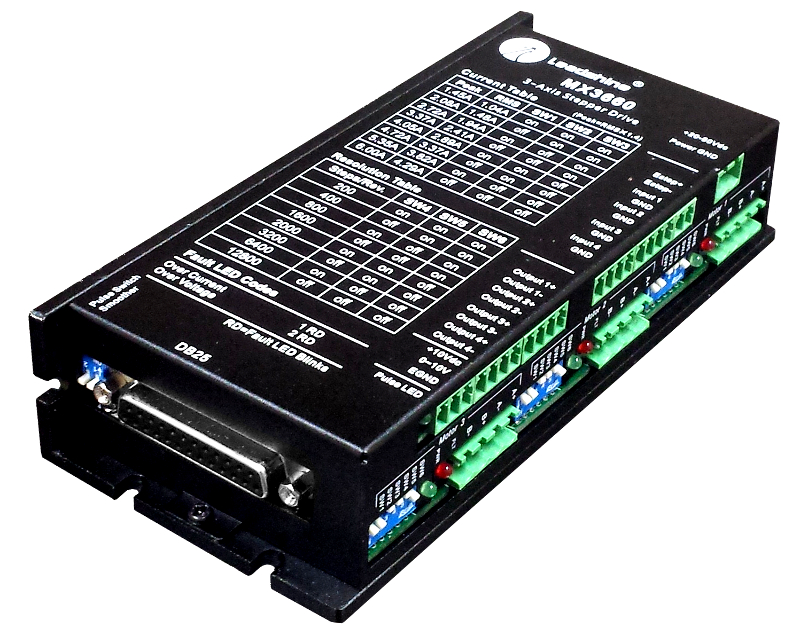

The Leadshine MX3660 is a 3-axis stepper drive with built-in breakout board and I/O's. It was specially designed to allow EASY and RAPID implementation for full control of 3 stepper motors of frame size 17, 23, 24, or 34.

Based on latest DSP technology and adopting Leadshine’s advance stepper control algorithm, Leadshine MX3660 comes with advanced features such as anti resonance for low & middle speed motor movement, multi-stepping, automatic idle current reduction, and input pulse train smoothing. With the working voltage of 20-60VDC and output current up to 6.0A (peak of sinusoidal), MX3660 can drive 3 two-phase stepper motors in frame size NEMA 17, 23, 24, or 34 at high precision with extra low motor heating, very smooth motor movement, and low noise.

Via DIP switches of a MX3660, a user can easily set stepper motor current and resolution configurations.  You can configure the micro step resolution for any driven stepper motor to one of the 8 available settings of 200, 400, 800, 1,600, 2,000, 3,200, 6,400, and 12,800; output current configuration to one of the 8 available settings of 1.45A, 2.08A, 2.72A, 3.37A, 4.05A, 4.72A, 5.35A, and 6.0A. Each individual axis can be set with different configuration. For example, you can configure axis 1 with 1/16 micro step & 6.0A to drive a large NEMA 34 stepper motor, axis 2 with 1/10 micro step and 2.72A to drive a NEMA 23 stepper motor, and axis 3 with 1/8 micro step and 1.45A current to drive a NEMA 17 stepper motor.

A Leadshine MX3660 3-axis stepper drive comes with an integrated breakout board with DB25 connector and built-in IO’s for easy connections to devices like a motion controller / PLC, limit switches, VFD, E-Stop… This allows MX3660 to be rapidly set up with some popular control systems such as Mach3 and EMC. Therefore, it can save installation space & time, minimize wiring, increase system reliability, and cut costs for extra component addition.

A Leadshine MX3660 stepper drives can also be used as a general purpose 3-axis stepper drive to work with any step/direction controllers or PLC’s, which will allow full control of 3 stepper motors. While using the DB25 connector to input control signals, fault signals (if any) can be sent back to connected controller / PLC / external devices. Users also have freedom to choose whatever available built-in inputs / outputs to use.

For many PLC’s and motion controllers (especially software based), output pulse train may contain “noise” pulses which would affect system performance. A MX3660 3-axis stepper drive has a “smoother” switch which could smooth (application dependant) those high frequency pulses and improve the whole motion control systems.

MX3660 adopts modular design for the 3 individual stepper drive boards. If any axis of the drive board malfunction, a user can simply replace it with a MX660 stepper drive module at minimal cost.
Accessories

Listed below are accessories for Leadshine MX3660 3-Axis Stepper Drive. Powering Up To 3 NEMA 17/23/24/34 Stepper Motor; Individual Setting For Each Axis Via DIP Switches; 20-60 VDC Input; 1.45-6.0A Output Current; Built-In Breakout Board.

  Model / Description 1 Pc. / 5 Pc. Price Purchase

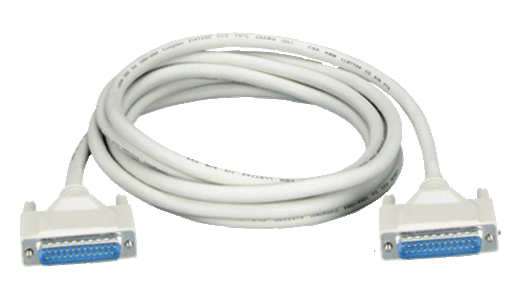

CBL-DB25 CBL-DB25: 5.3-Foot (1.65-meter) Parallel Cable With DB25 Male Connectors. $10.00 / $9.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for MX3660 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
42HS03 42HS03: Leadshine 42HS03 2-Phase NEMA 17 Stepper Motor with 67 OZ-IN (0.47 N.m) Torque $28.00 / $26.00 Order Quantity:
HS1705 HS1705: AMT HS1705 NEMA 17 2-Phase 74 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $16.00 / $15.00 Order Quantity:
HS2311A HS2311A: AMT HS2311A NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $20.00 / $19.00 Order Quantity:
HS2311B HS2311B: AMT HS2311B NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $21.00 / $20.00 Order Quantity:
57HS09 57HS09: Leadshine 57HS09 2-Phase NEMA 23 Stepper Motor with 184 OZ-IN (1.3 N.m) Torque $49.00 / $46.00 Order Quantity:
HS2320A HS2320A: AMT HS2320A NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $27.00 / $26.00 Order Quantity:
HS2320B HS2320B: AMT HS2320B NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $28.00 / $27.00 Order Quantity:
HS2328A HS2328A: AMT HS2328A NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $39.00 / $38.50 Order Quantity:
HS2328B HS2328B: AMT HS2328B NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $41.00 / $40.50 Order Quantity:
HS23B30A HS23B30A: AMT HS23B30A NEMA 23 2-Phase 382 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $46.00 / $44.00 Order Quantity:
HS23B35A HS23B35A: AMT HS23B35A NEMA 23 2-Phase 495 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $55.00 / $52.00 Order Quantity:
86HS35 86HS35: Leadshine 86HS35 2-Phase NEMA 34 Stepper Motor with 496 OZ-IN (3.5 N.m) Torque $109.00 / $99.00 Order Quantity:
HS3442 HS3442: AMT HS3442 NEMA 34 2-Phase 595 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $89.00 / $83.00 Order Quantity:
86HS45 86HS45: Leadshine 86HS45 2-Phase NEMA 34 Stepper Motor with 637 OZ-IN (4.5 N.m) Torque $119.00 / $109.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for MX3660. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS487 SPS487: Leadshine SPS487 Ultra Compact 48VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $89.00 / $84.00 Order Quantity:
SPS487-L SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input $89.00 / $84.00 Order Quantity:
PS405-5 PS405-5: Leadshine PS405-5 Linear Power Supply;36 VDC/5A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS405-12 PS405-12: Leadshine PS405-12 Linear Power Supply;36 VDC/5A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS408-5 PS408-5: Leadshine PS408-5 Linear Power Supply;36 VDC/8A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
PS408-12 PS408-12: Leadshine PS408-12 Linear Power Supply;36 VDC/8A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought CNC Kits Including MX3660

The following cnc kits are frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

MX-P323-156 MX-P323-156: 3-Axis NEMA 23 CNC Stepper Kit. 156 Oz-In NEMA 23 Motors with 1/4'' (6.35mm) Single Shaft; 3-Axis MX3660 Stepper Drive; 24 VDC/10A Power Supply 85-132 or 176-265 VAC Input
1 Pc. / 5 Pc. Price:
$409.00 / $389.00
MX-P323-382 MX-P323-382: 3-Axis NEMA 23 CNC Stepper Kit. 382 Oz-In NEMA 23 Motors with 3/8'' (9.525mm) Single Shaft; 3-Axis MX3660 Stepper Drive; 48 VDC/10.4A Power Supply 85-132 or 176-265 VAC Input
1 Pc. / 5 Pc. Price:
$509.00 / $479.00
MX-P323-400 MX-P323-400: 3-Axis NEMA 23 CNC Stepper Kit. 400 Oz-In NEMA 23 Motors with 1/4'' (6.35mm) Single Shaft; 3-Axis MX3660 Stepper Drive; 48 VDC/10.4A Power Supply 85-132 or 176-265 VAC Input
1 Pc. / 5 Pc. Price:
$509.00 / $479.00
MX-P323-495 MX-P323-495: 3-Axis NEMA 23 CNC Stepper Kit. 495 Oz-In NEMA 23 Motors with 3/8'' (9.525mm) Single Shaft; 3-Axis MX3660 Stepper Drive; 48 VDC/10.4A Power Supply 85-132 or 176-265 VAC Input
1 Pc. / 5 Pc. Price:
$529.00 / $509.00
MX-P334-595 MX-P334-595: 3-Axis NEMA 34 CNC Stepper Kit. 595 Oz-In NEMA 34 Motors with 1/2'' (12.7mm) Single Shaft; 3-Axis MX3660 Stepper Drive; 48 VDC/10.4A Power Supply 85-132 or 176-265 VAC Input
1 Pc. / 5 Pc. Price:
$619.00 / $589.00
Similar Products
